Lock Carrier, Service Position

NOTE:
- Do not remove noise insulation, only loosen front quick release screws.
- Bumper removed.

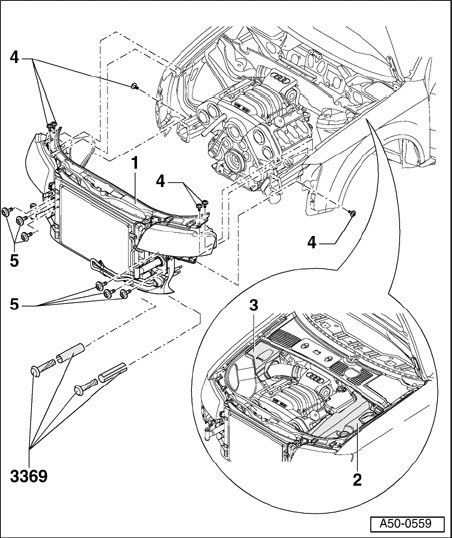

1 - Lock carrier
- Service position
- Unscrew intake air duct between lock carrier and air cleaner housing at lock carrier and remove.
- On the left side, screw in special tool 3369 in threaded hole
- On the right side, screw in special tool 3369.
- Unscrew mounting bolts - 5 - at left and right.
- Unscrew mounting bolts - 4 - and pull lock carrier - 1 - toward front.
- Secure lock carrier.
2 - Left engine cover
3 - Right engine cover
4 - Combination bolt
- 10 Nm
5 - Combination bolt
- 50 Nm
- For service position, screw in special tool 3369.

NOTE: After assembly of lock carrier, check headlight positioning and adjust if necessary.







Screw in special tool 3369
- Screw in special tool 3369 left and right as shown.
- Pull lock carrier forward until rear hole in lock carrier aligns with front threaded hole in fender flange.







Secure lock carrier
- Secure lock carrier at left and right with bolts.
