Fuse Box, Removing and Installing




Fuse Box, Removing And Installing

Removing
- Remove driver's storage compartment:

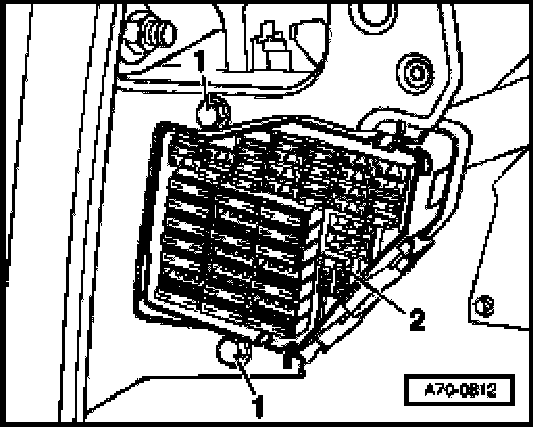

- Remove bolts -1- of fuse box -2-.
- Detach fuse box from center tube for instrument panel.
- Detach wiring harness on center tube for instrument panel and move clear.

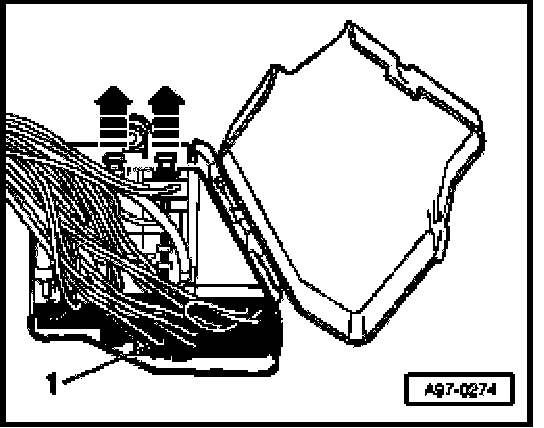

- Cut through cable tie -1-.
- Release cover for fuse box -arrows-.

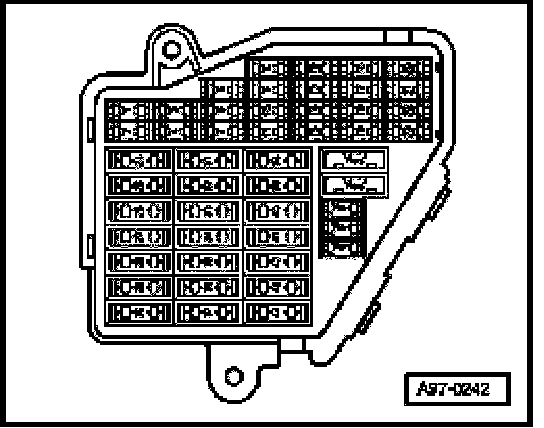

- Pull fuses from fuse box.







- Pull off retaining strip for connectors -arrows-and remove connectors from fuse box.
- Unclip base -1-.

NOTE:







Refer to the applicable wiring diagram for exact identification of connections on fuse box.


Installing
Installation is carried out in reverse order.
