Component Locations Overview



Overview Of Component Locations

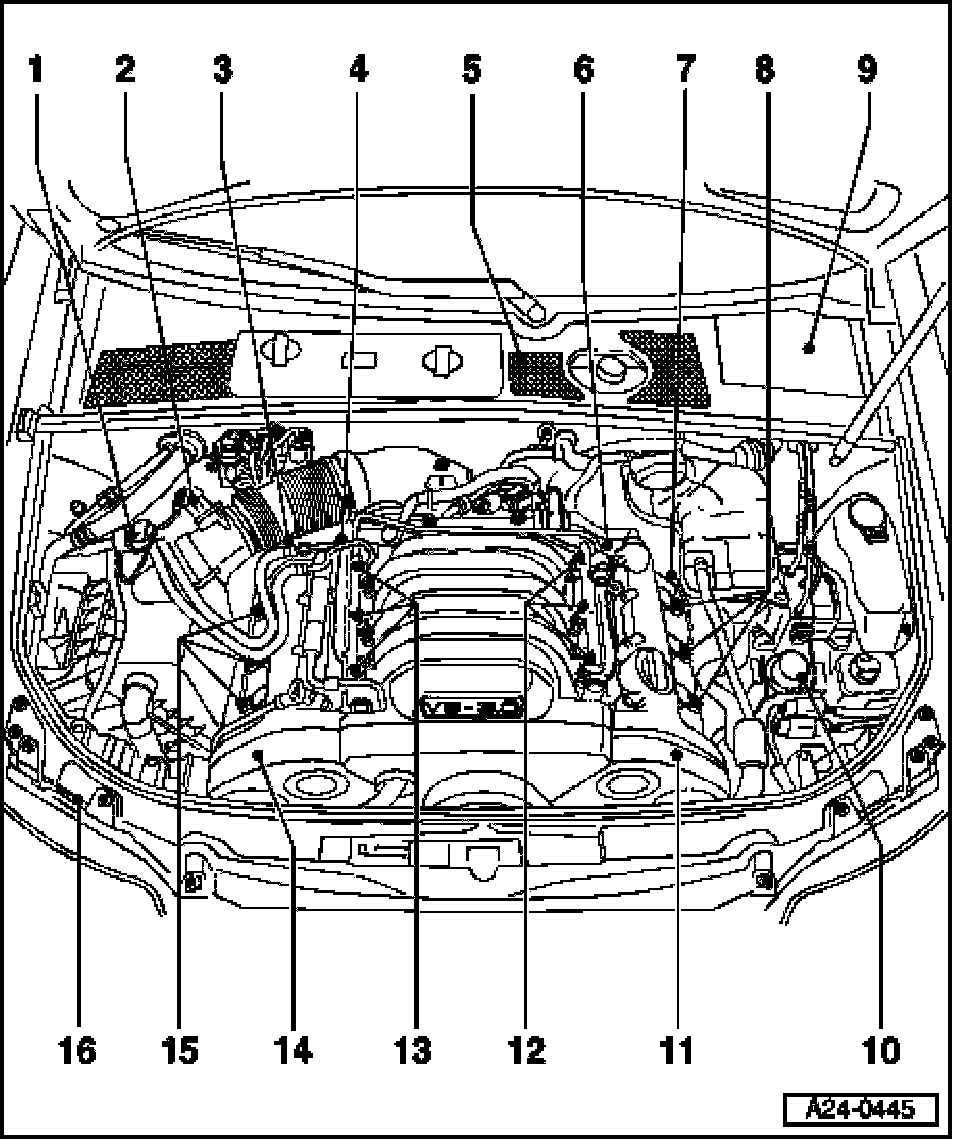

Component Locations, Overview:






9 E-box, plenum chamber
- Installation locations, See Fig. 4
- Component location of Motronic Engine Control Module (ECM) -J220-
- Check voltage supply of Engine Control Module (ECM)
- Removing and installing Engine Control Module (ECM)
- Component location of Motronic Engine
- Control Module (ECM) voltage supply relay -J271-
- Check Motronic Engine Control Module (ECM) voltage supply relay -J271-
- Component location of Secondary Air Injection (AIR) pump relay -J299-
- Checking Secondary Air Injection (AIR) Pump Relay -J299-
- Component location of fuse S130 for Secondary Air Injection (AIR) pump


Fig. 4 Component locations in E-box, plenum chamber







1 Motronic Engine Control Module (ECM) -J220-
2 Secondary Air Injection (AIR) pump relay -J299-
3 Motronic Engine Control Module (ECM) voltage supply relay -J271-
4 Fuse S130 for Secondary Air Injection (AIR) pump
