Driver's Window Regulator Switch, Removing and Installing
Driver's Window Regulator Switch, Removing And Installing -

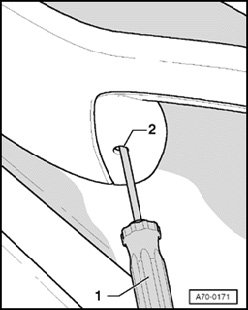

Insert screwdriver - 1 - in hole - 2 -.
-
Use screwdriver - 3 - to press retainer - 2 - in direction of arrow - A -.
-
Remove window regulator switch unit - 1 - in direction of arrow - B -.
-
Press retainer tab - 2 - and pull off connector - 1 -.
