Memory Seat/Steering Column Adjustment Control Module J136 / Passenger Memory Seat Control Module J521



Memory Seat/Steering Column Adjustment Control Module J136 / Passenger Memory Seat Control Module J521, Removing And Installing

NOTE:
- If possible: Move seat up and back as far as possible.
- For emergency power supply of forward and backward seat adjustment and seat height adjustment motors.

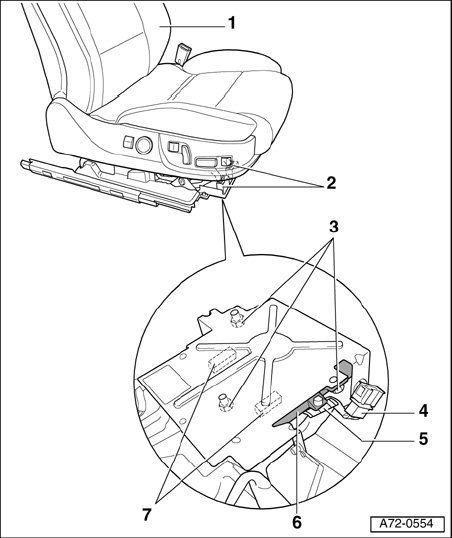

1 - Front seat
2 - Connectors
Qty. 2
3 - Nuts
Qty. 3
4 - Connector
5 - Securing clips
Qty. 2
6 - Control module
Removing
- Disconnect connector - 4 -.
- Unfasten wiring harness on left and right at securing clips - 5 - (2x).
- On inside of control module - 6 - Remove nuts - 3 - (3x).
- On front of control module - 6 - disconnect connectors - 2 - (2x).
- Lift out control module - 6 - until connectors - 7 - (2x) are accessible.
- Unfasten securing clips (2x) and disconnect connectors - 7 - (2x).
Installing
- Install control module - 6 - in reverse order of removal.
7 - Connectors
Qty. 2
