Keyless Entry

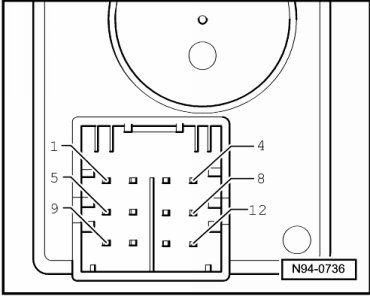

Access/Start Authorization Switch Connector Assignment 1. Switch matrix S2
2. Withdrawal lock magnet AZS
3. Terminal 31
4. Immobilizer SCLK
5. Switching matrix S1
6. Switching matrix S6
7. Switching matrix S3
8. Immobilizer Data 2
9. 12 V
10. Switching matrix S5
11. Switching matrix S4
12. Immobilizer Data 1
