Navigation System

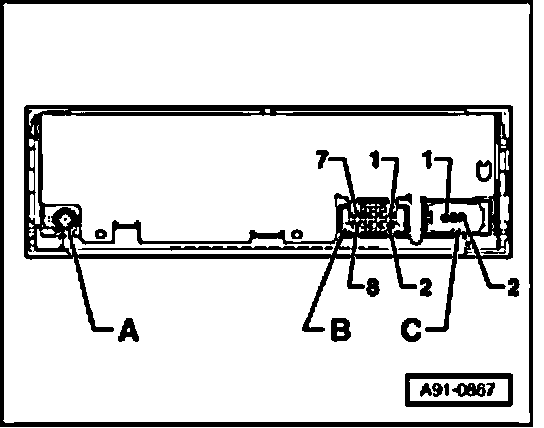

Terminal Assignments/electrical Connectors On Control Module For Navigation System With CD Mechanism -J401-NOTE: Terminals which are not listed are vacant/unassigned.
A
GPS antenna connection
B
8-pin connector
1
Battery +(terminal 30)
2
Ground (terminal 31)
5
Open circuit diagnostic wire
C
Input/output for fiber-optic MOST data bus
1
Input
2
Output
