Solar Sensor: Service and Repair

Instrument Panel

Sunlight Photo Sensor with Cover

Removing

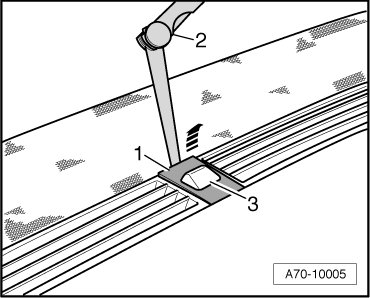

- Unclip cover cap - 1 - using a feeler gauge 0.35 mm - 2 - out of center defroster vent - arrow -.

- Pry out Sunlight Photo Sensor (G107) - item 3 - and disconnect harness connector.

Installing

Installation is reverse of removal.
