Rear Camber, Adjusting

Rear Camber, Adjusting

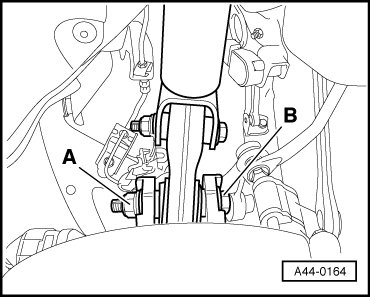

- Remove the wheel bearing housing/track control arm connection nut - A -.





- Adjust the camber by turning the eccentric bolt - B -.

Specified values for wheel alignment. Refer to => [ Wheel Alignment Specifications ] Wheel Alignment Specifications.

• The maximum adjustment range is 90 degrees to the left or right of the center position.

• For a better illustration, camber adjustment is shown with wheel removed.

- Install a new nut - A - and tighten. refer to - item 17 - in => [ Stabilizer Bar, Track Control Arm, Tie Rod, Coupling Rod, Connecting Link, Trailing Arm and Level Control System Sensor Assembly Overview ] Stabilizer Bar, Track Control Arm, Tie Rod, Coupling Rod, Connecting Link, Trailing Arm and Level Control System Sensor Assembl.

- After tightening the nut - A -, check the camber value once more. Refer to => [ Wheel Alignment Specifications ] Wheel Alignment Specifications.
