Accelerator Pedal Module With Accelerator Position Sender, Removing and Installing
Accelerator pedal module with accelerator position sender, removing and installingRemoving -

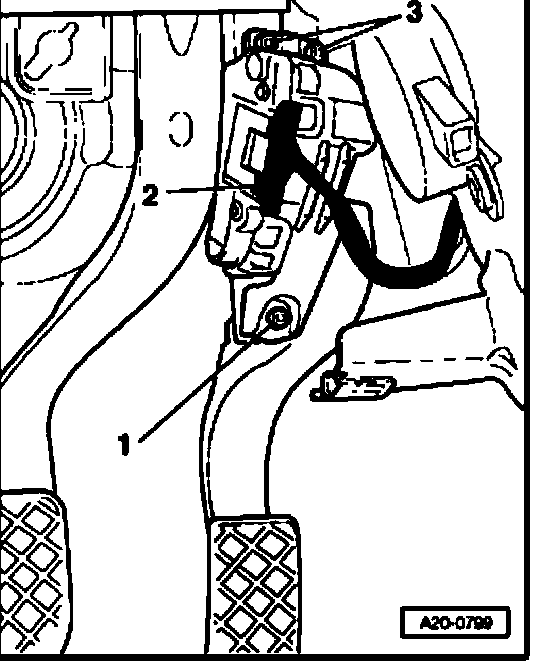

Remove storage compartment on driver's side:
-
Unplug 6-pin connector -2-.
-
Unscrew bolts -1- and -3-.
-
Remove accelerator pedal module.
Installing Installation is performed in the reverse order.

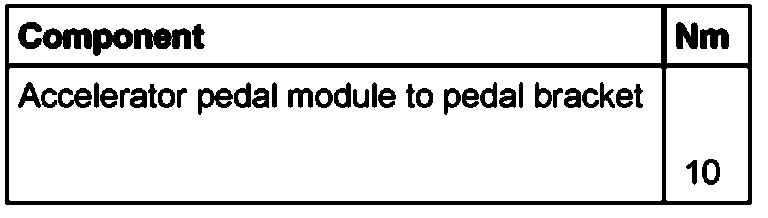

Tightening torque
