Throttle Position Sensor: Service and Repair

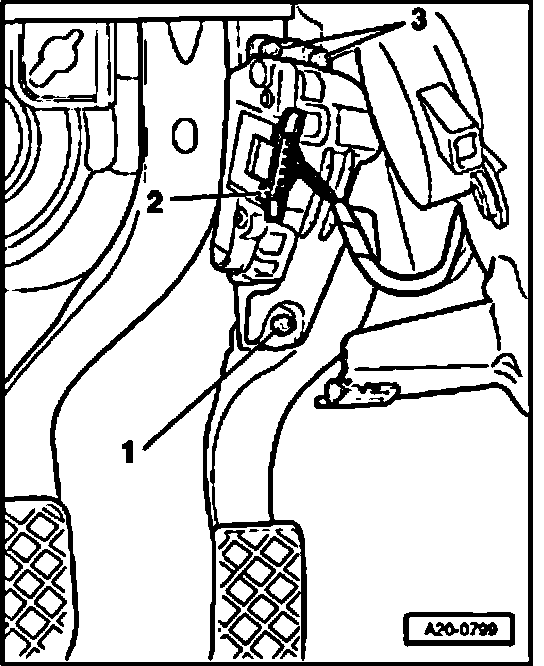

Accelerator Pedal Module With Throttle Position (TP) Sensor -G79- And Sender -2- For Accelerator Pedal Position -G185-, Removing And Installing

Removing
- Remove driver-side storage compartment.







- Disconnect 6-pin harness connector -2-.
- Remove bolts -1- and -3-.
- Remove accelerator pedal module.

Installing
Installation is performed in the reverse order of removal.

Tightening torque

Component Nm
Accelerator pedal module at pedal mount 10
