A/T Control Module (TCM) -217- and Multi-Function Transmission Range (TR) Switch -F125

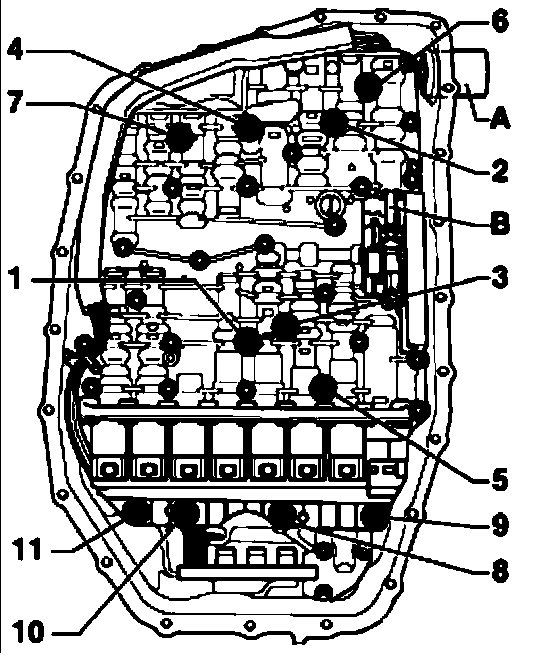

Fig. 7 Automatic Transmission Control Module (TCM) -217- and Multi-function Transmission Range (TR) switch -F125-
Location: integrated in mechatronics unit and can only be replaced or removed together with mechatronics unit.
