Radiator Cooling Fan Control Module: Locations








The coolant fans for this vehicle are controlled by the Engine Control Module (ECM) J623 and does not use relays.

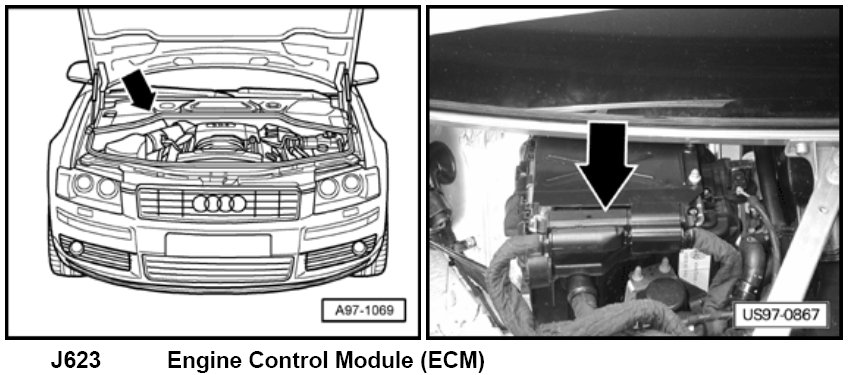

The ECM is located on the E-box, plenum chamber, passenger's side.
