Procedures



Headlight Range Control Module -J431-, Removing And Installing

Location: Behind instrument cluster on support.

Removing
- If control module is replaced, select "Replacement" function for appropriate control module in "Guided Fault Finding" routine.
- VAS 5051 Vehicle Diagnostic Testing and Information system must be used for this purpose.
- Remove instrument cluster.

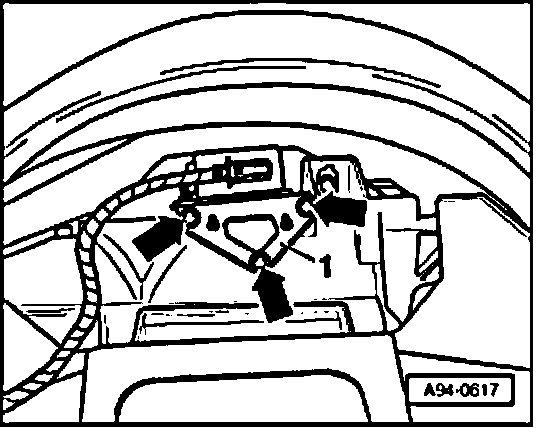

- Remove screws -arrows-.
- Remove bracket -1-.

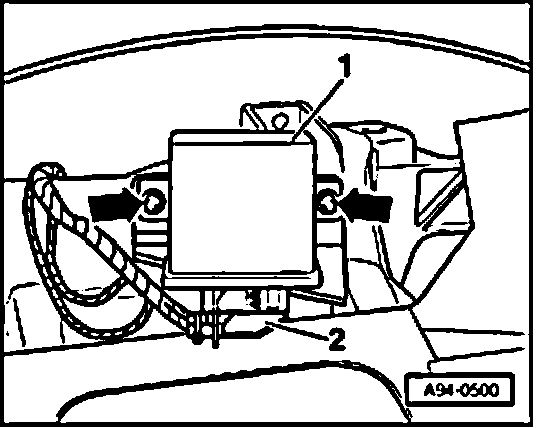

- Disconnect electrical connector -2-.
- Remove nuts -arrows- and remove headlight range control module -1-.

Installing
Install in reverse order of removal.

Tightening torques

Component Nm
Control module to bracket 2.5
Bracket to instrument panel support 3.0
