Tightening Torques
Tightening torques Note:
^
Tightening torques listed in this information apply only to lightly greased, oiled, phosphate, or black-finished nuts and bolts.
^
Additional lubricant such as engine or transmission oil may be used, but do not use graphite lubricant.
^
Do not use degreased parts.
^
Tolerance for tightening torques ± 15%

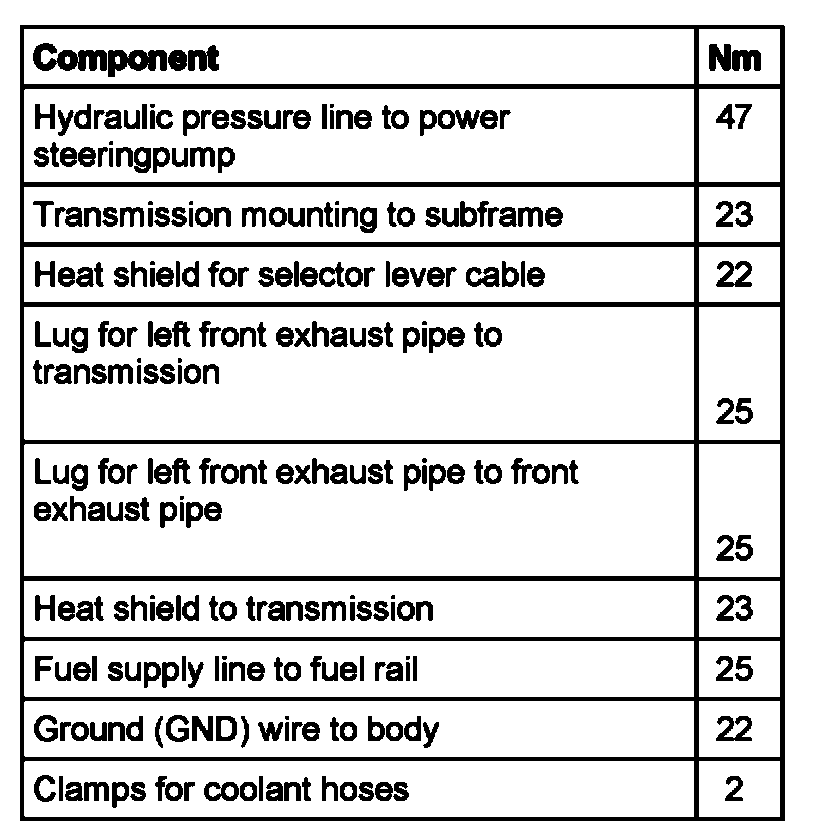

Part 1:

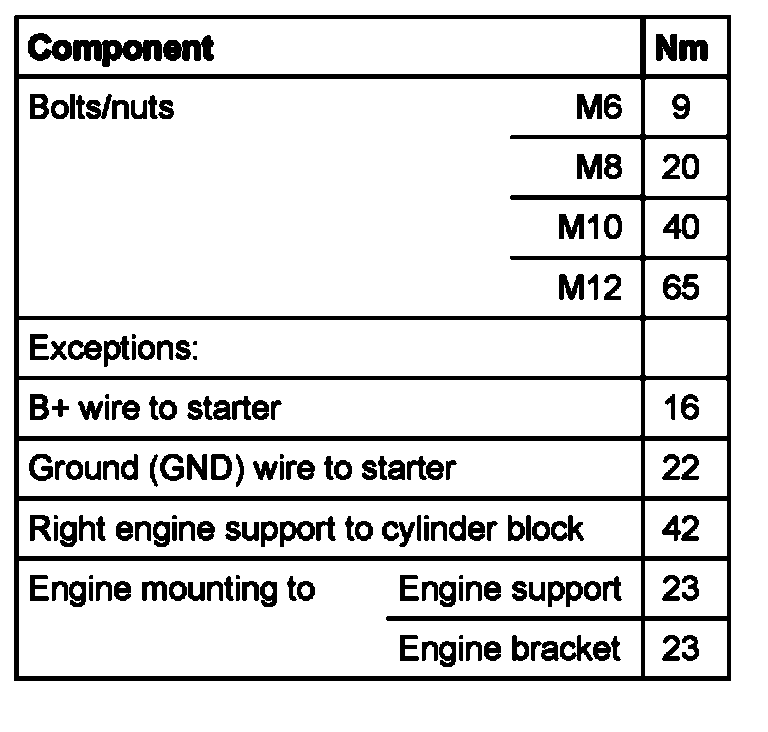

Part 2:
