Window Regulator, Assembly Overview

Window Regulator, Assembly Overview

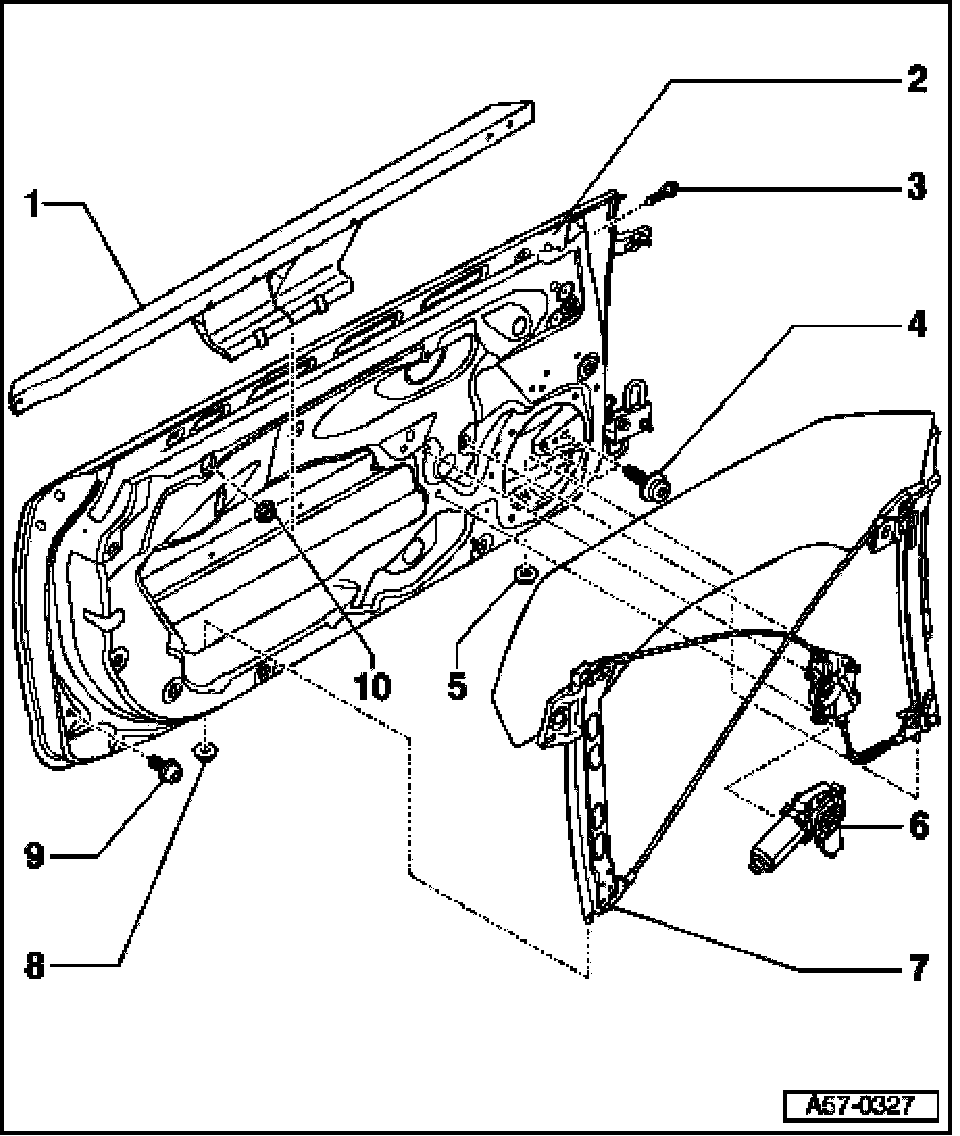

1. Impact bar
- Removing
- Removing door trim.
- Window regulator removed.
- Unscrew the Torx bolts -3- and -8-, and remove the impact bar upward.

2. Front door
- Joint dimensions

3. Bolt
- 8 Nm

4. Torx bolt
- 30 Nm

5. Hex nut
- 8 Nm

6. Motor for window regulator

7. Window regulator
- Removing:
- Removing door trim.
- Detach connectors.
- Remove the window regulator motor
- Unscrew the bolts -2-, and the hexnuts -4-; -7- and -9-.
- Pull the window regulator upward out of the door.

8. Hex nut
- 8 Nm

9. Torx bolt
- 30 Nm

10. Hex nut
- 8 Nm
