Steering Wheel

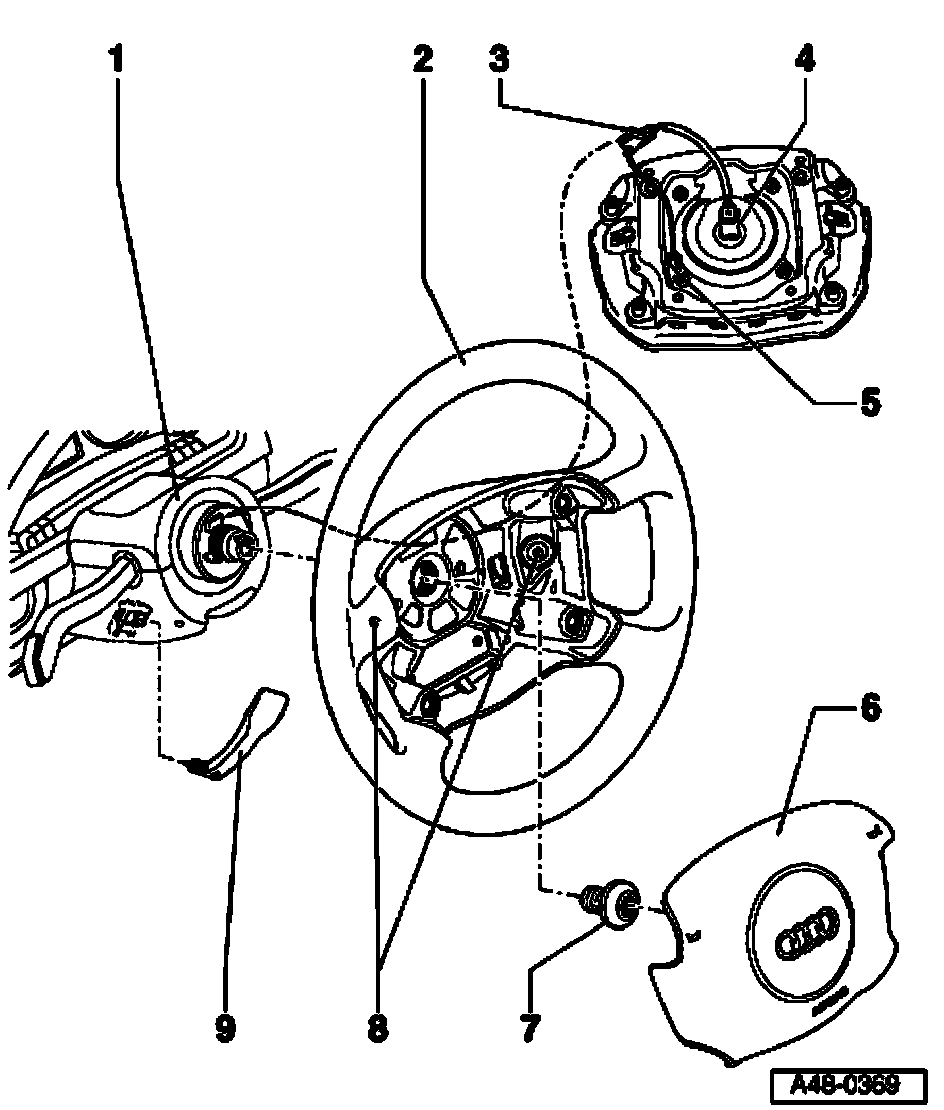

Steering wheel with airbag, overview 1 -
Steering column switch trim
^
Removing and installing
2 -
Steering wheel ^
Removing and installing
^
Different versions available
3 - Coil connector plug
4 - Connector for airbag module
5 - Horn connector
6 - Airbag module
^
Observe safety precautions
^
Removing and installing
7 - Multi-point socket head bolt,
50 Nm 8 - Bolt
9 - Lever for
steering column adjustment
