Knock Sensor: Locations

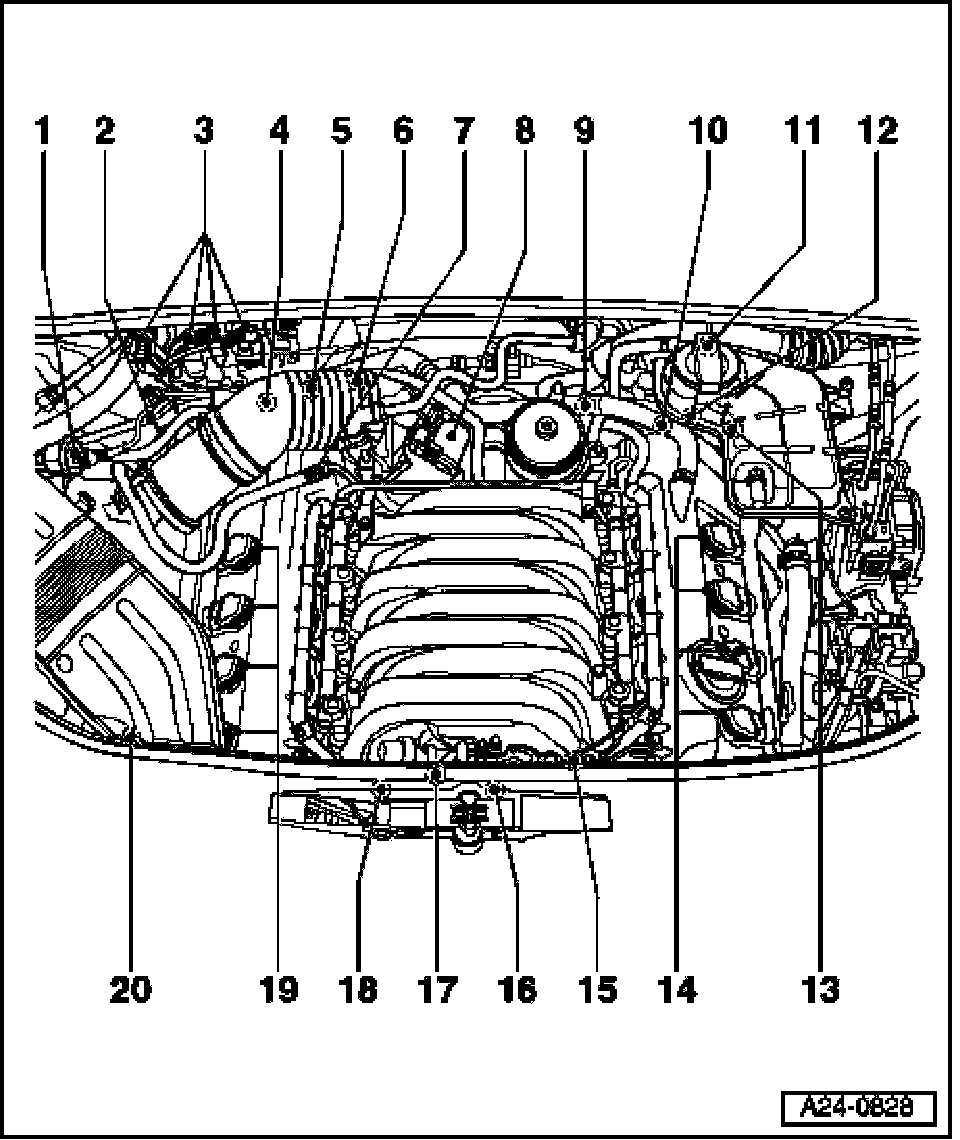

Component Locations, Overview:
15
-
3-pin connector
-
For knock sensor 3 -G198-
-
For knock sensor 4 -G199-
-
See Fig. 13
18
-
3-pin connector
-
For Knock Sensor (KS) 1 -G61-
-
For Knock Sensor (KS) 2 -G66-
-
See Fig. 13
Fig. 13 Front view 2
-
Knock Sensor (KS) 1 -G61-
3
-
Knock Sensor (KS) 2 -G66-
6
-
Knock sensor 3 -G198-
7
-
Knock sensor 4 -G199-
