Service Specifications

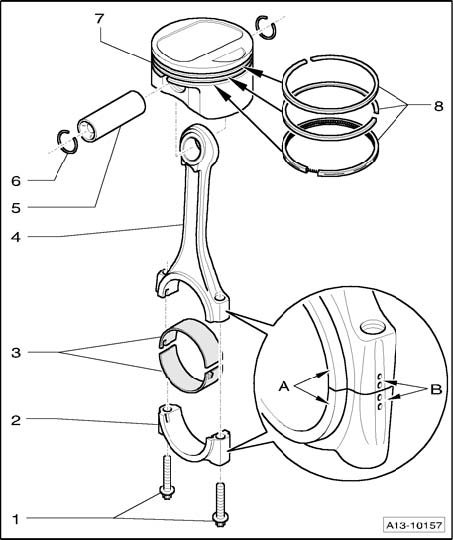

Connecting Rod Connecting rod bolt
30 Nm plus 1/4 turn (90°)
New radial play
0.028 to 0.077 mm
Radial play wear limit
0.12 mm
Axial play for each new
connecting rod pair
0.20 to 0.38 mm
Axial play wear limit
0.60 mm
Piston RingMain Bearing Basic dimension of main
crankshaft journals
65 mm diameter
Repair stage of main
crankshaft journals
64.75 mm diameter
Vibration Damper
