Antitheft Mode Switch: Service and Repair

Interior Monitor Switches, Removing and Installing

Removing
- Remove B-pillar trim on driver side.
- Disconnect harness connector for the switch to be replaced.

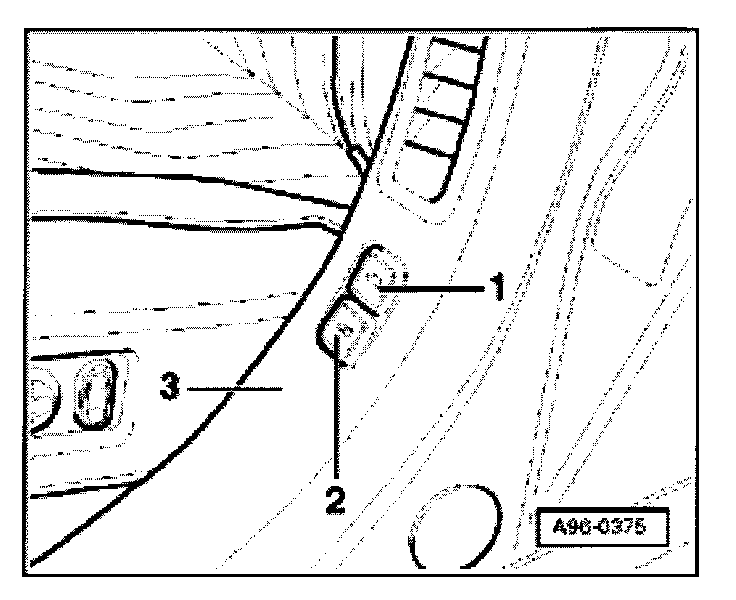

- Using a small standard screwdriver, unlock the holding clips of the switch -1- (trunk release) or -2- (interior monitor) and push forward out of the trim panel of the B pillar -3-.

Installing
- Install in reverse order of removal.
