Ignition Switch

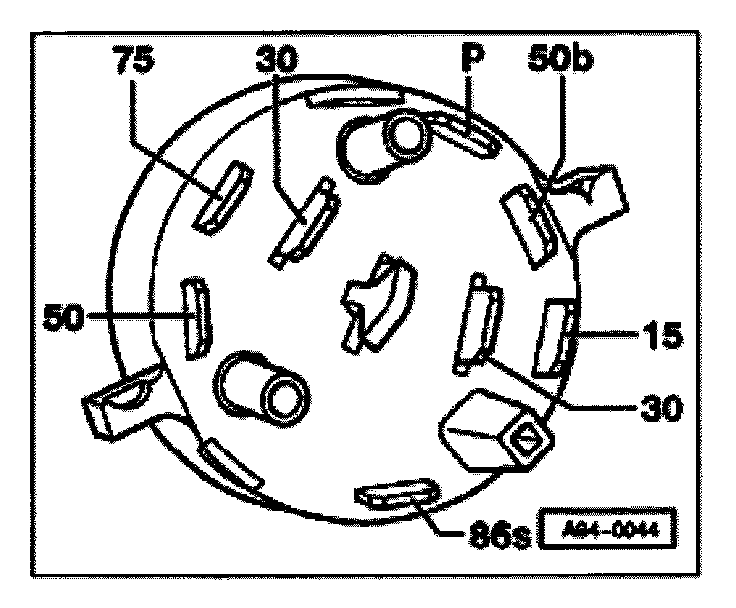

Ignition/starter switch, terminal assignments

15 - Terminal 15
30 - Terminal 30
50 - Terminal 50
50b - Terminal 50b
75 - Terminal 75
86s - Terminal 86s
P - Park position
