Ambient Temperature Sensor / Switch HVAC: Service and Repair




Fresh Air Intake Duct Temperature Sensor -G89-, Removing And Installing

- Remove glove box

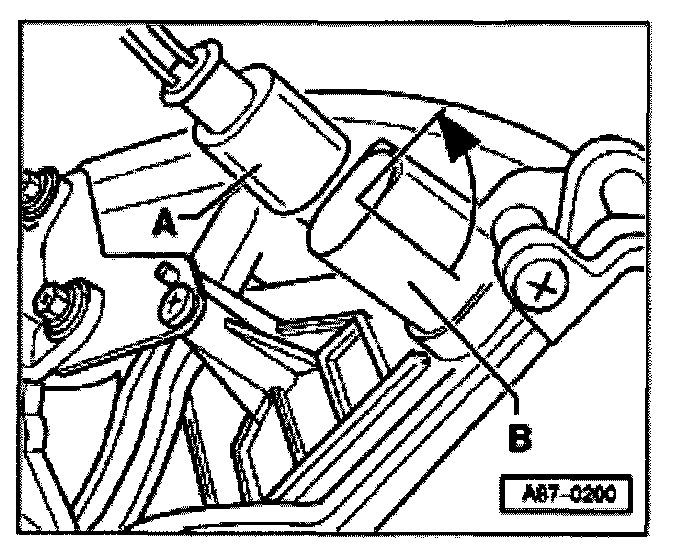

- Disconnect harness connector -A-.
- Turn sensor -B- 90 ° (1/4 turn) and pull out of air duct.
