Evaporator Temperature Sensor / Switch: Service and Repair




Evaporator Vent Temperature Sensor -G263- Removing And Installing


NOTE:
- Evaporator Vent Temperature Sensor -G263- applies only to vehicles from model year 2002 with a compressor using A/C Compressor Regulator Valve -N280-.
- On vehicles from model year 2002 and a compressor with A/C Clutch -N25-, the opening is closed with a plug.


- Remove glove compartment:

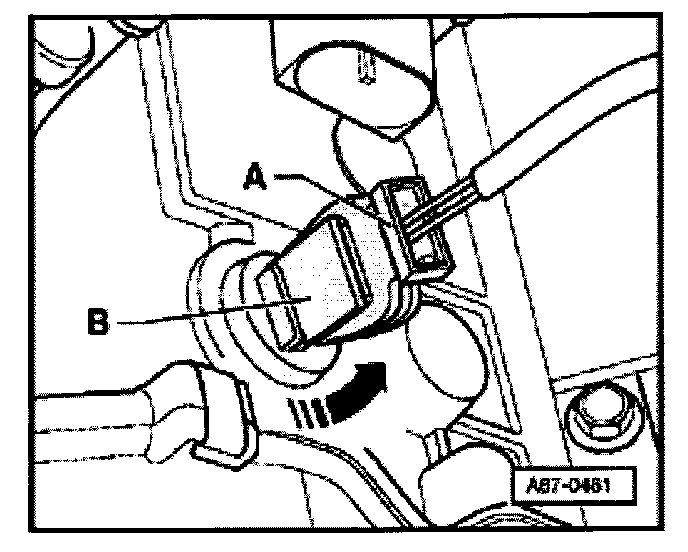

- Disconnect connector -B-.
- Turn sensor -B- 90 ° (1/4 turn) and pull out of air conditioning unit.
