Refrigerant Pressure Sensor / Switch: Service and Repair
A/C Pressure Switch -F129-Removing and installing -
Remove front bumper
-
Disconnect harness connector.
-

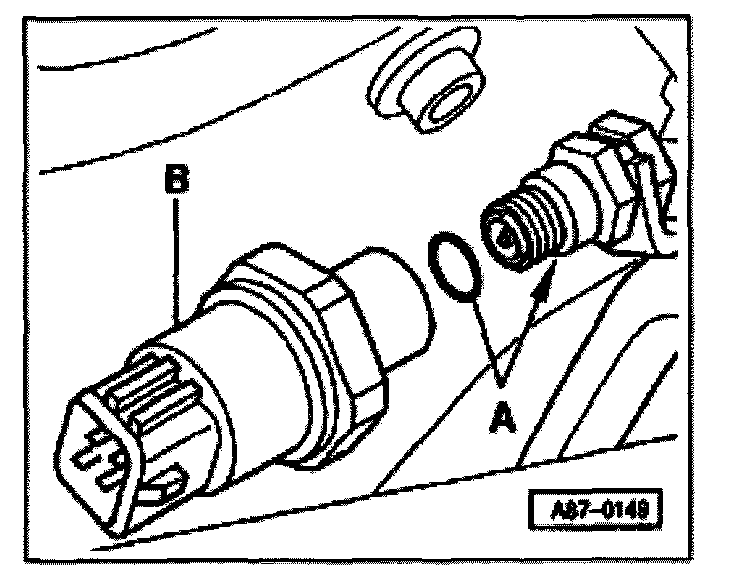

Remove pressure switch -B-:
Tightening torque:
5 Nm. -
O-Ring-seal -A-
(10.8 mm x 1.8 mm).
NOTE: -
With the switch removed bridge terminals 1 and 2 of connector -B- to check cooling performance.
-
The refrigerant circuit remains closed, connection with valve.
