Fuel Filter: Locations

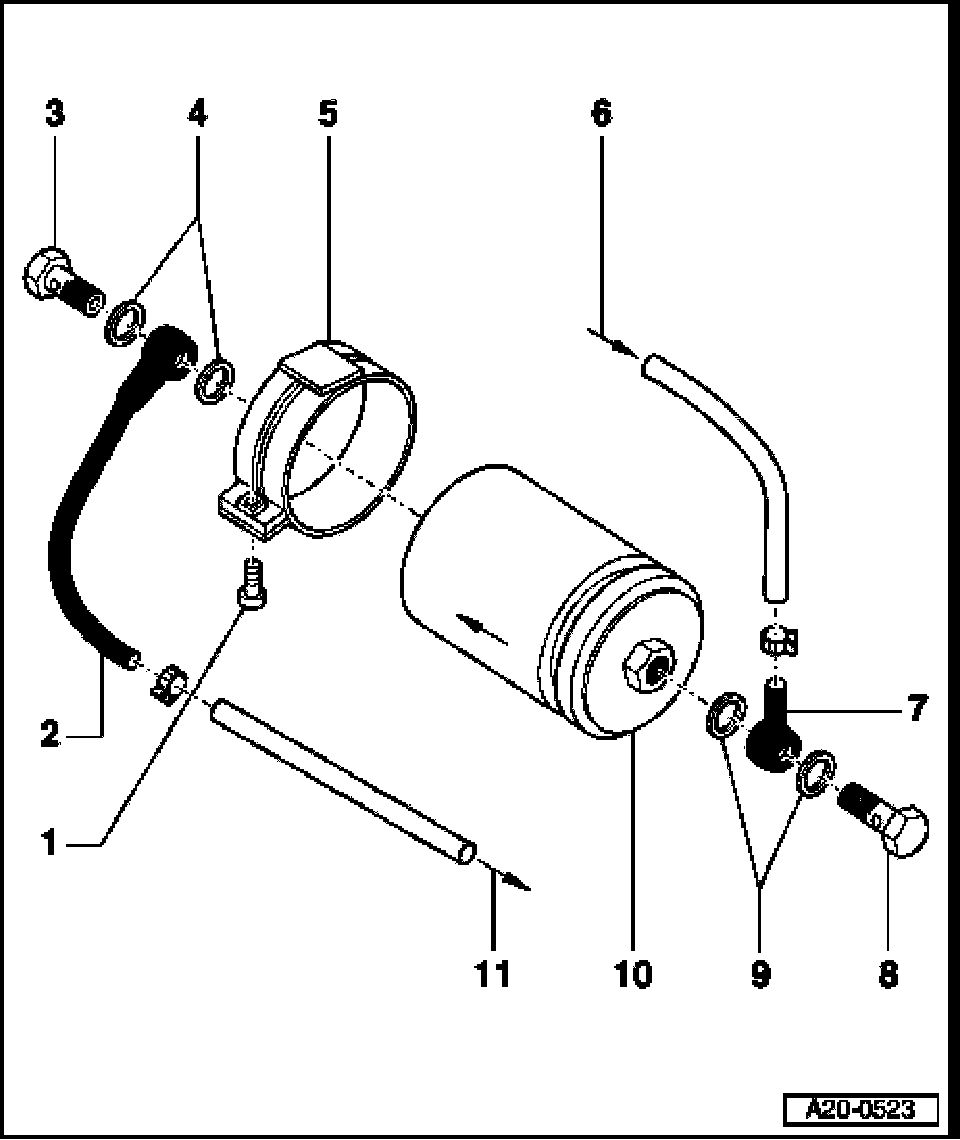

Fuel Filter - Component Overview

WARNING: Fire hazard. DO NOT smoke or work near heaters of have anything in the area that can ignite fuel.

NOTE: Fuel filter is located in front right outside at fuel tank.







1 2 Nm
2 Connection flange hose for fuel supply line
3 Bolt - 23 Nm (17 ft lb)
4 Sealing washer
- Always replace
5 Bracket
- For fuel filter
6 Fuel supply line
- From fuel tank
7 Connection flange hose for fuel supply line
8 Bolt - 23 Nm (17 ft lb)
9 Sealing washer
- Always replace
10 Fuel filter
- Under vehicle, in front of right rear wheel
- Flow direction is marked by an arrow
- Do not interchange connections
11 Fuel supply line
- To fuel supply line at fuel rail
