Power Steering Fluid: Service and Repair

Power steering fluid level, checking

^ Do not run engine and turn front wheels to straight ahead position.

Fluid, when Cold (Outside Temperature Approximately +20°C)

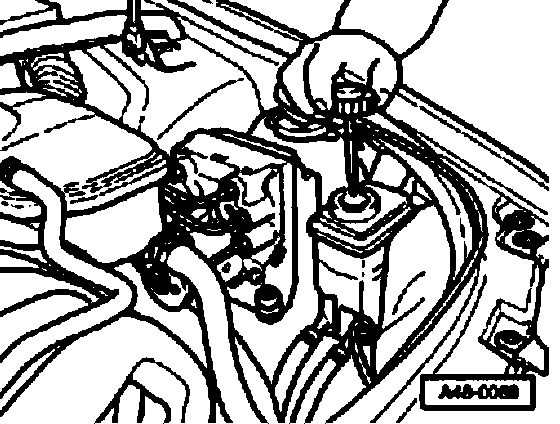

^ Remove the cap.

^ Wipe dipstick off with a clean cloth.

^ Screw cap on hand-tight and unscrew again.

The cap must be fully screwed in order to obtain an accurate fluid level reading.





- Check fluid level: Oil level must be within "MAX" marking.

Fluid at Operating Temperature (Engine Oil Temperature +80°C)





^ Check fluid level: Oil level must be 10 mm above "MAX" marking.

NOTE:
- Fluid must be drawn off if the level is above the specified range.
- If oil level is below aformentioned area, then the hydraulic system must be checked for leaks. Is is not sufficient to merely top off the fluid.
- Do not use drained hydraulic oil.
