Display Group 001

Read Measuring Value Block display group table

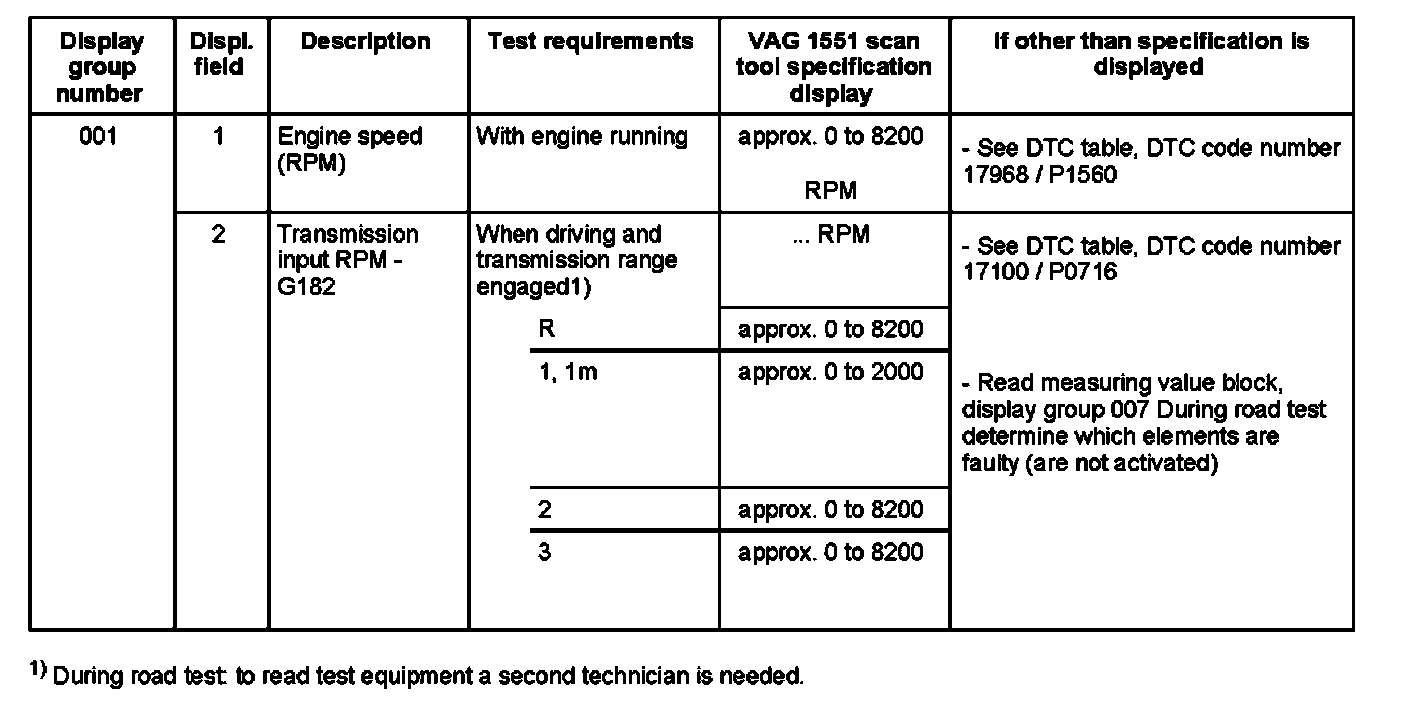

Display Group Number 001, Display Fields (1 - 2):

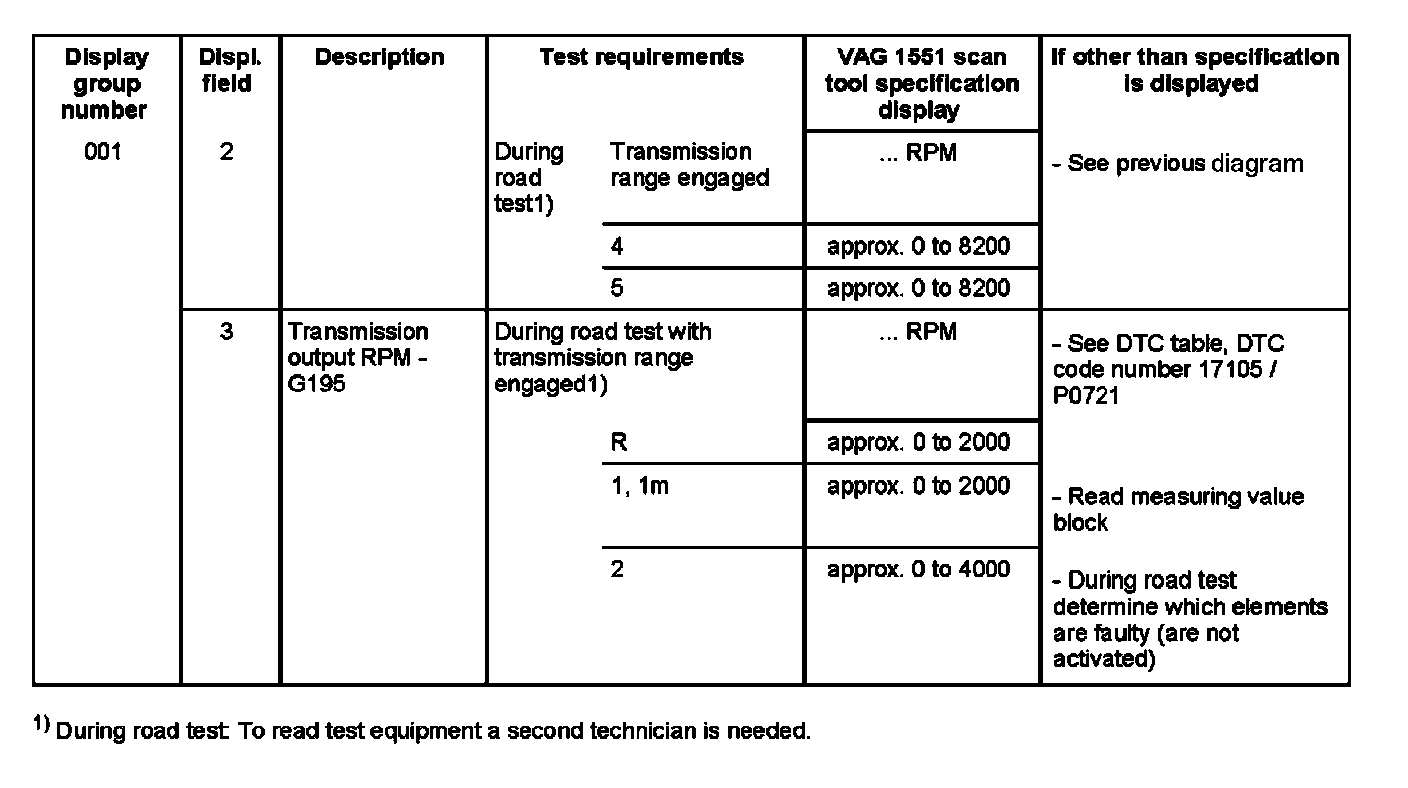

Display Group Number 001, Display Fields (2 - 3):

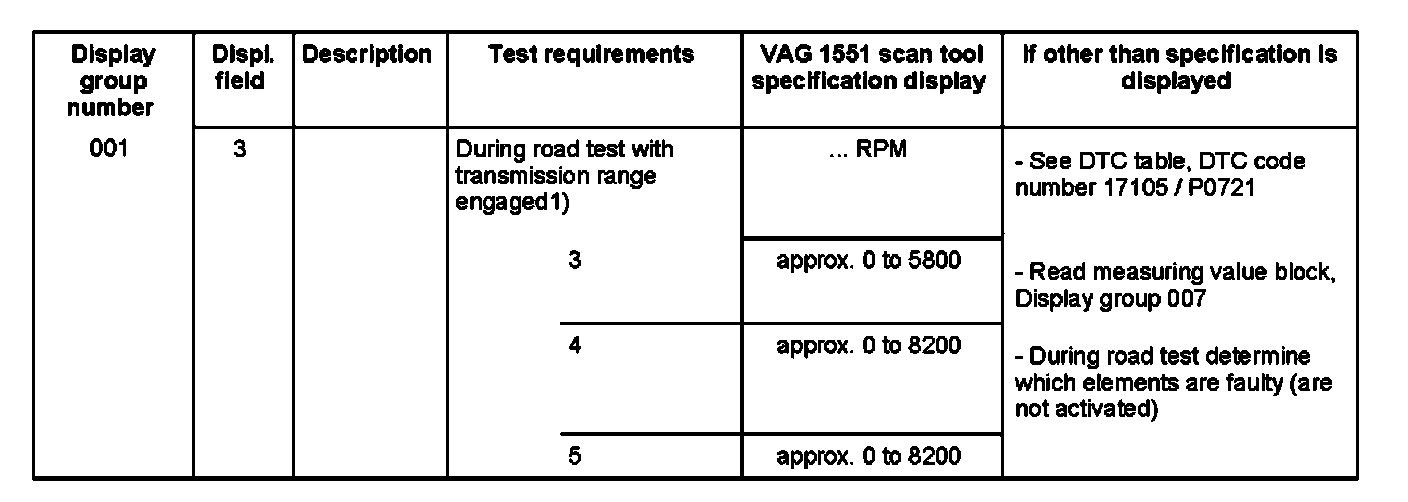

Display Group Number 001, Display Field 3:

Note to Display group number 001, Display field 1 to 3:
^ Test requirements: The shifting action must be completed. The vehicle must not decelerate (no downhill driving or engine braking).

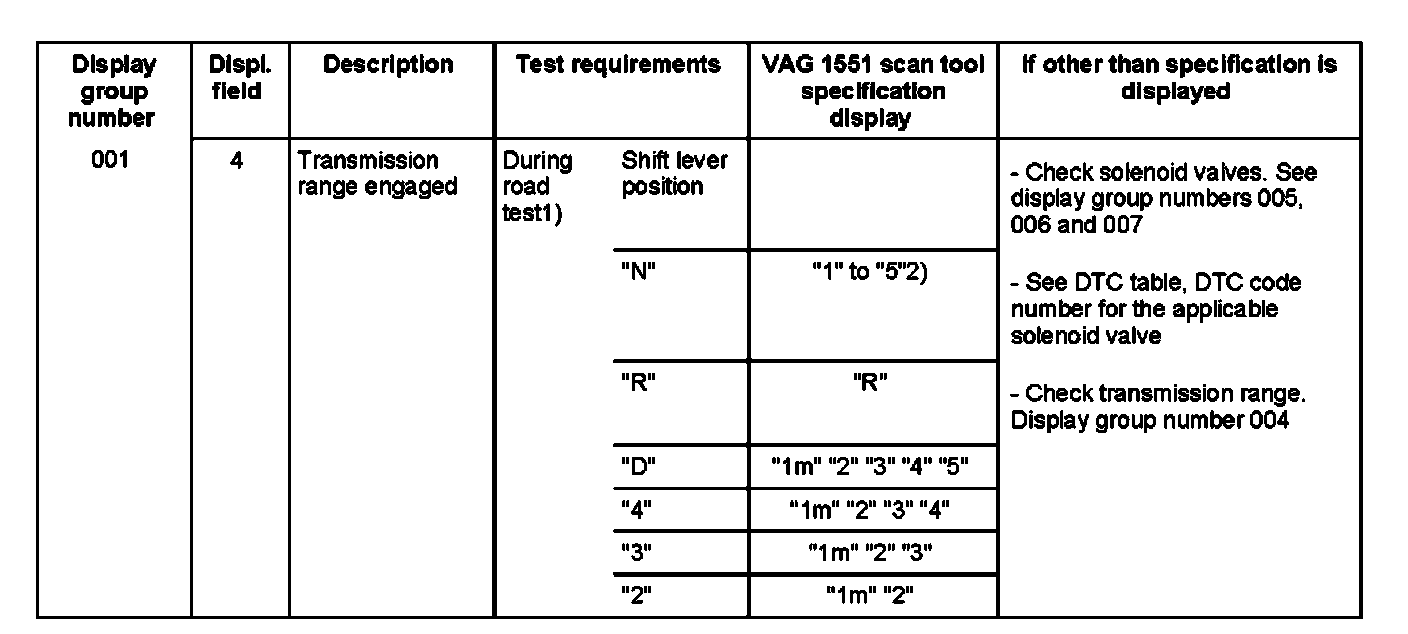

Display Group Number 001, Display Field 4:

Note to display field 4, display group number 001.

Note to display field 4, display group number 001:
^ Faulty solenoid valves or other DTC's can prevent certain transmission ranges to be activated.
