Display Group 005

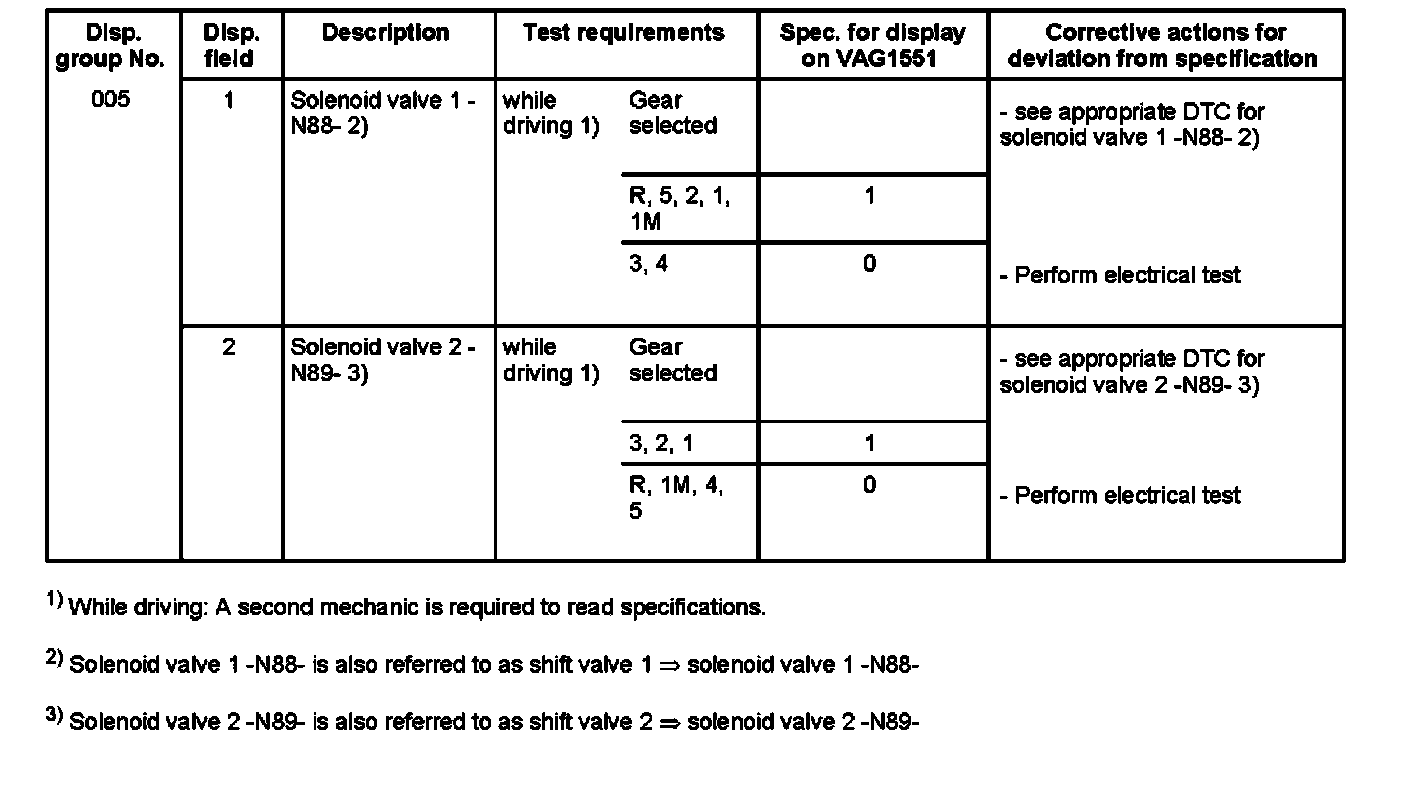

Only valid for transmission with hydraulic control E17Display Group 005, Display Field (1-2):

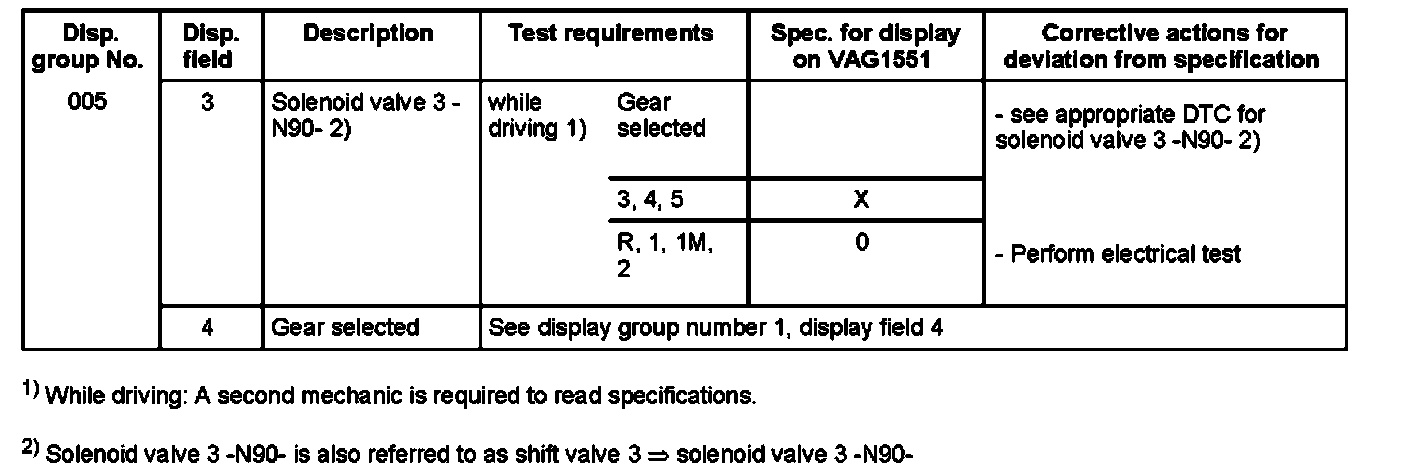

Display Group 005, Display Fields (3-4):
Note: For display group number 5, display field 1 to 3;
^
Un-switched solenoid valves are indicated with "0", switched solenoid valves are indicated with "1".
^
Variable switching solenoid valves are indicated with "X".
