Display Group 009

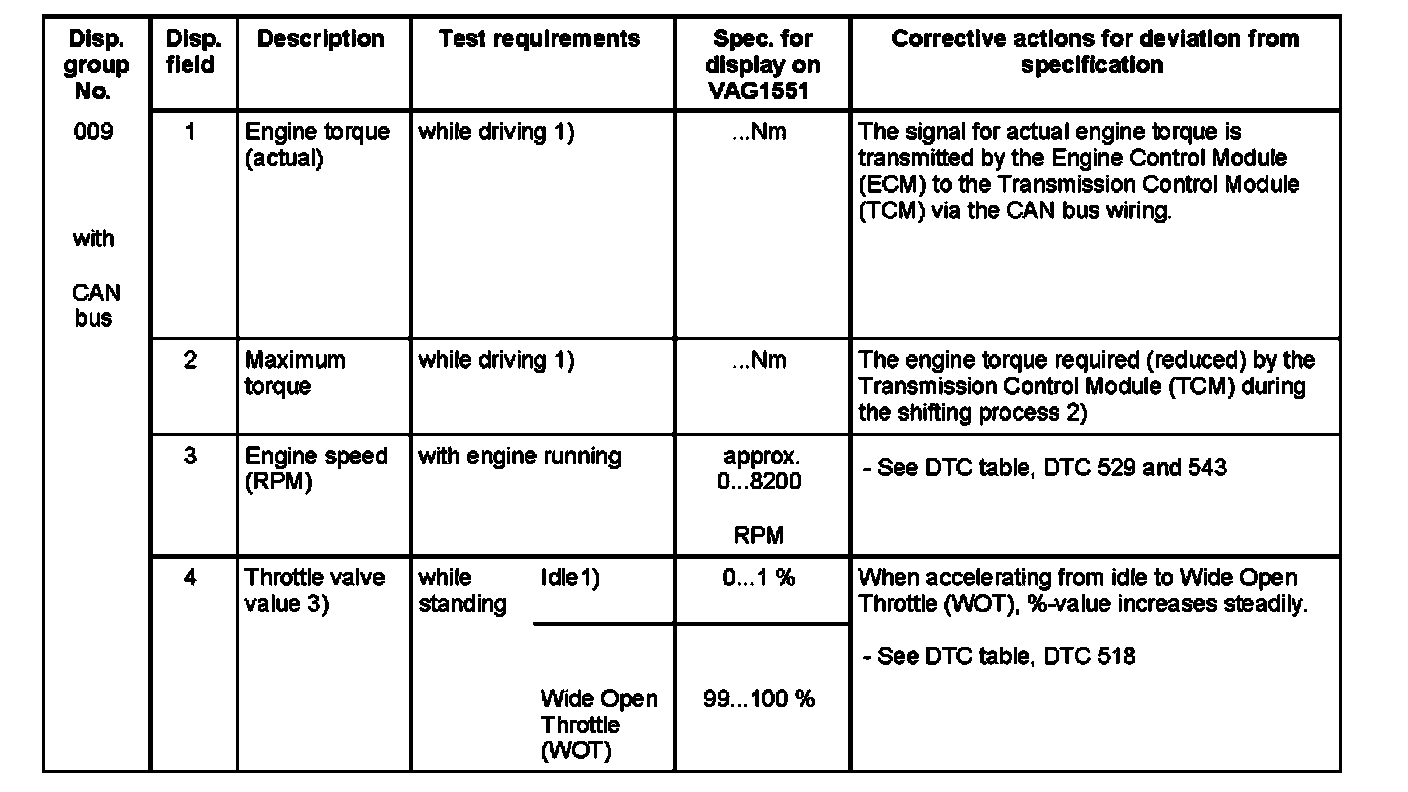

Display Group 009, Display Fields (1-4):

Only valid for transmission with hydraulic control E17

Note: For display group number 009;
^ This display group number 009 is only valid for vehicles with CAN bus, refer to display group number 009 for vehicles without CAN bus. A)
A) There is a distinction made between vehicles with and without CAN bus. For information on which vehicles are equipped with CAN bus

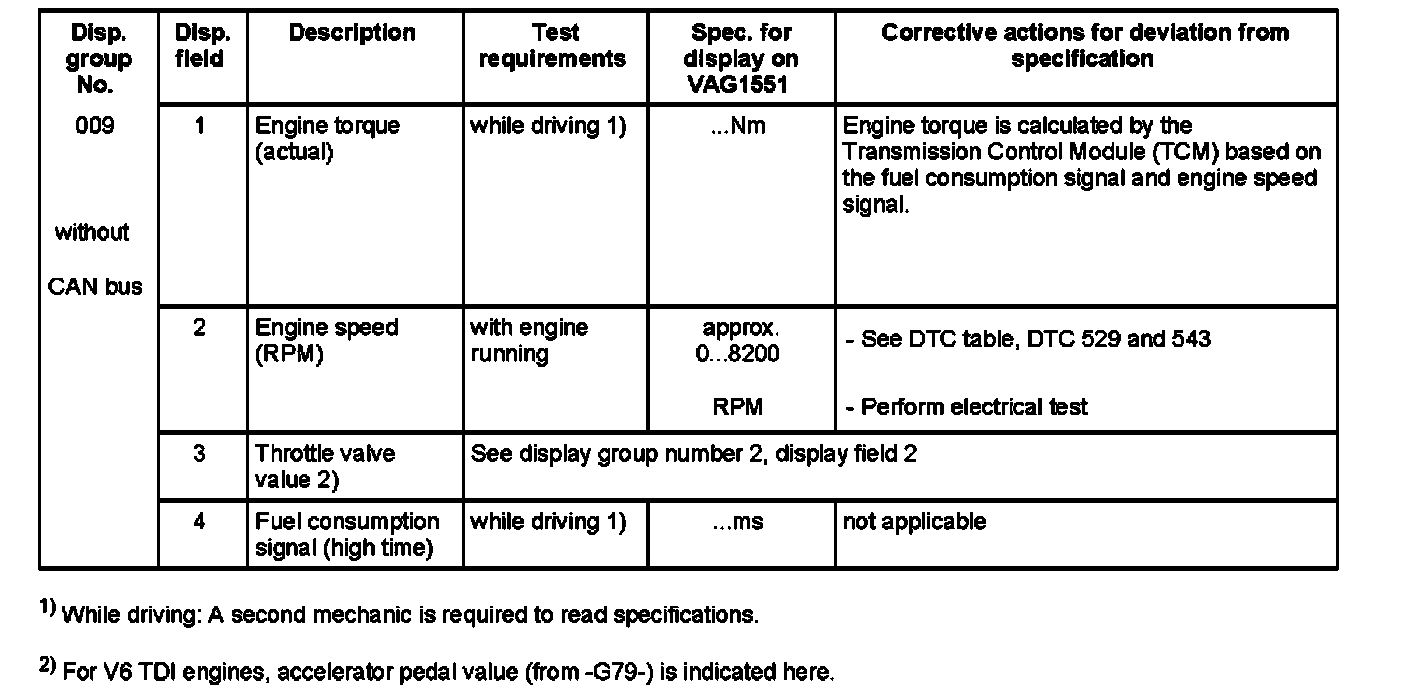

Display Group 009, Display Fields (1-4):

Only valid for transmission with hydraulic control E17

Note: For display group number 009;
^ This display group number 009 is only valid for vehicles without CAN bus, refer to previous display group number 009 for vehicles with CAN bus. A)
^ For vehicles with Motronic injection and ignition systems, engine torque is transmitted by the Engine Control Module (ECM). For these vehicles, the fuel consumption display is omitted or always indicates "Ohms".
A) There is a distinction made between vehicles with and without CAN bus. For information on which vehicles are equipped with CAN bus
