Display Group 125

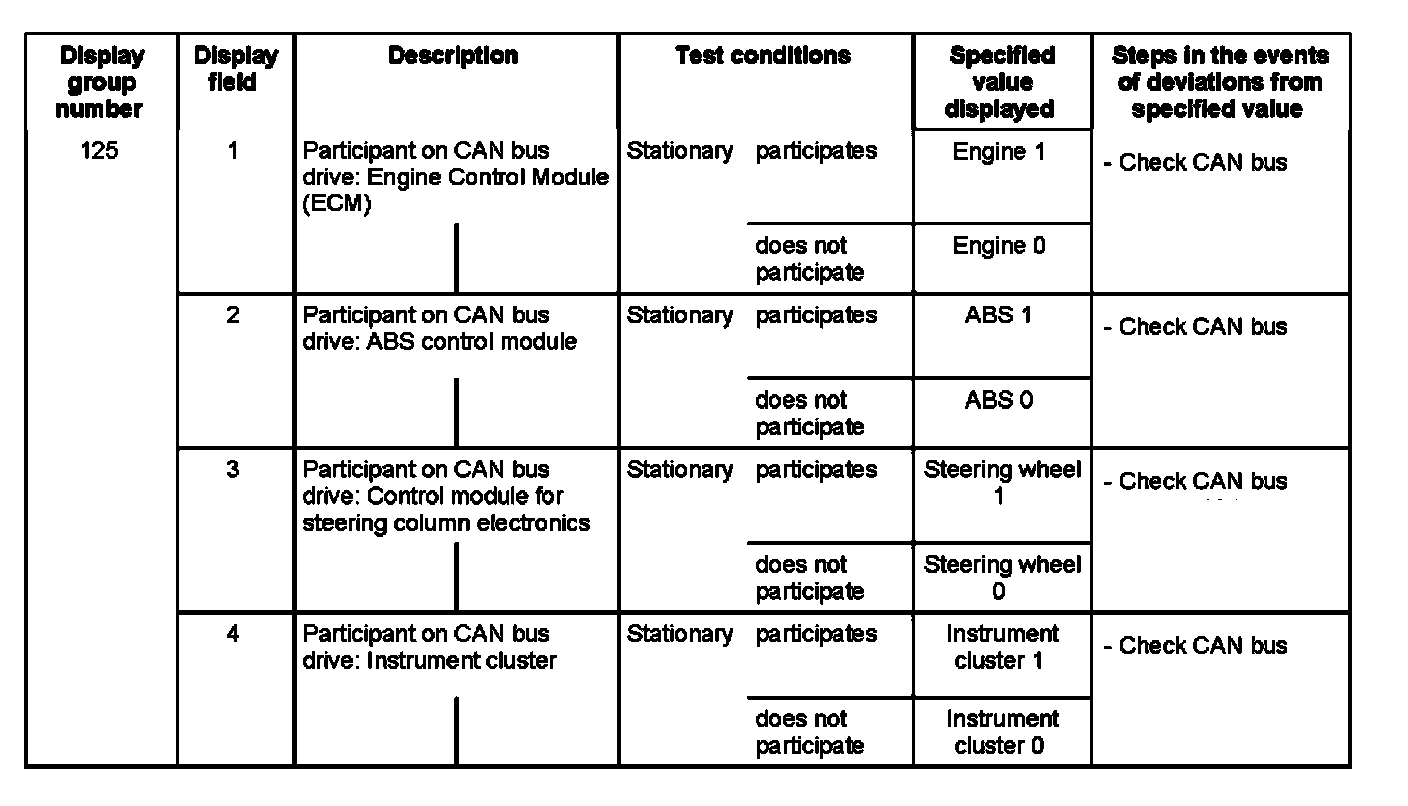

Measured Value Block table

Display Group Number 125, Display Fields (1 - 4):





Notes on display group number 125
^ IF "1" is displayed, communication from the corresponding control module to the Transmission Control Module (TCM) is O.K.
^ IF "0" is displayed and no trouble code has been set in the DTC memory, the corresponding control module does not have CAN capability (or is faulty).
