Air Injection: Locations

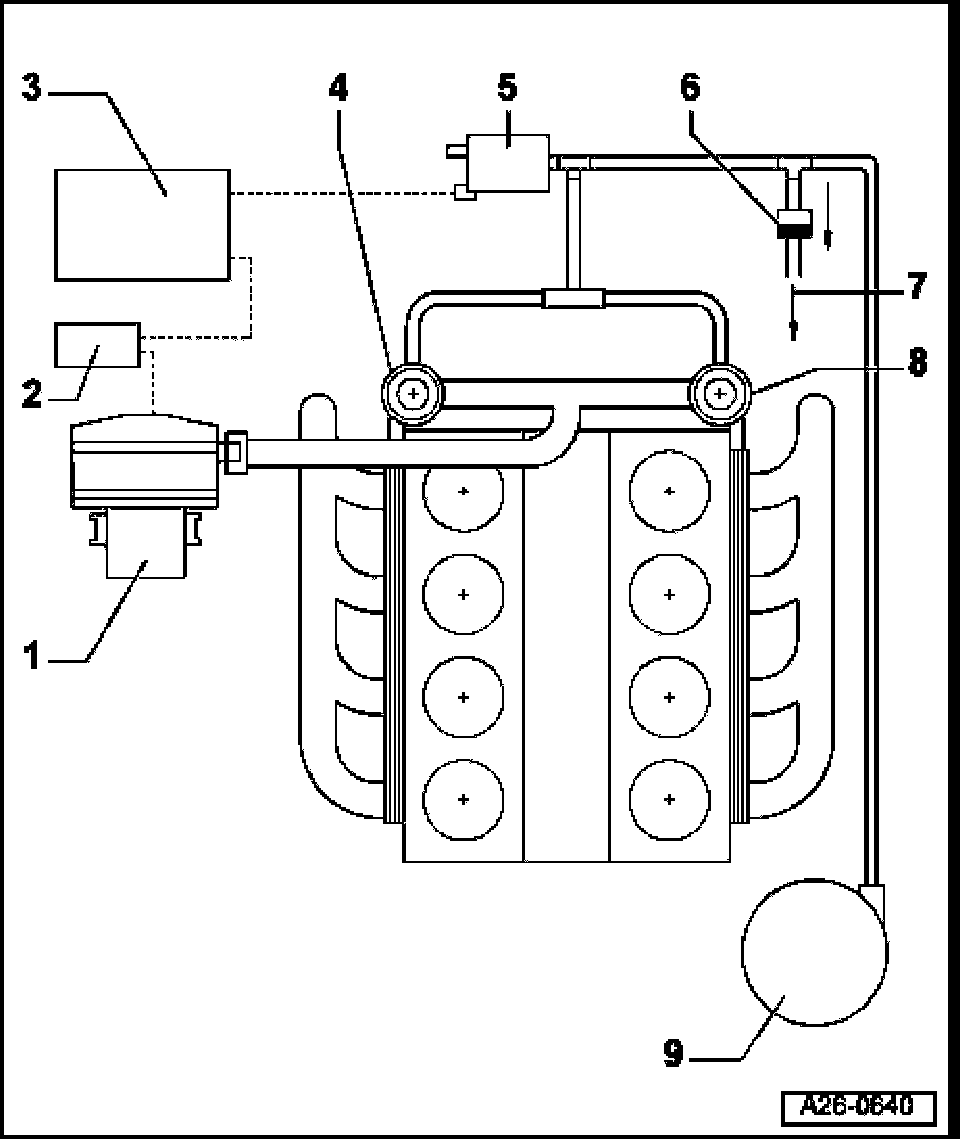

Component Overview







1 Secondary Air Injection (AIR) Pump Motor -V101-
- Component location, See Fig. 2.
2 Secondary Air Injection (AIR) pump relay - J299-
- Component location, See Fig. 3
3 Combination valve for secondary air injection (right)
- Component location, See Fig. 4
4 Secondary Air Injection (AIR) solenoid valve -N112-
- Component location, See Fig. 1
5 Check-valve
- Installation position: Arrow points in direction of aperture, as shown in figure.
6 to Intake manifold
7 Combination valve for secondary air injection (left)
- Component location, See Fig. 4
8 Vacuum reservoir
- Component location: Under wheel housing liner in front left wheel housing

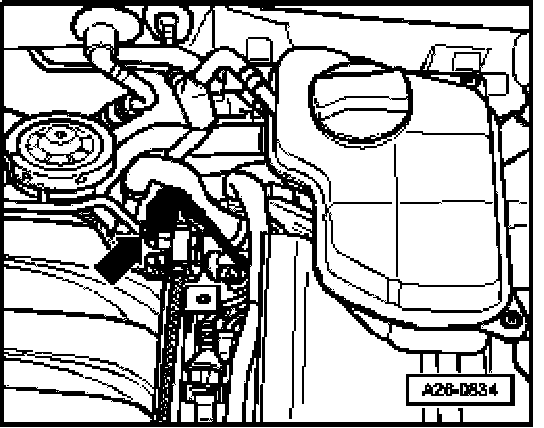

Fig. 1 Component location of Secondary Air Injection (AIR) Solenoid Valve -N112-







- At rear on fuel rail pipe (arrow).

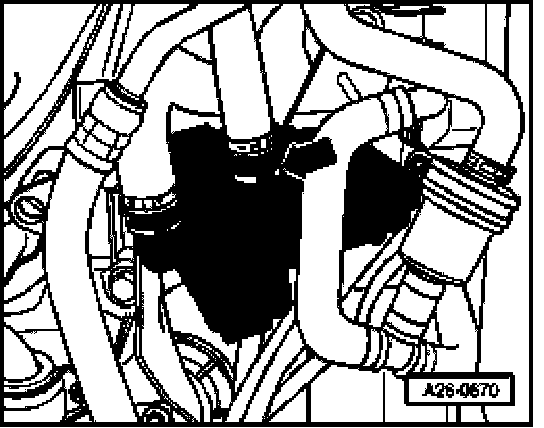

Fig. 2 Component location of Secondary Air Injection (AIR) Pump Motor -V101-







- At front right in engine compartment below the longmember (arrow)

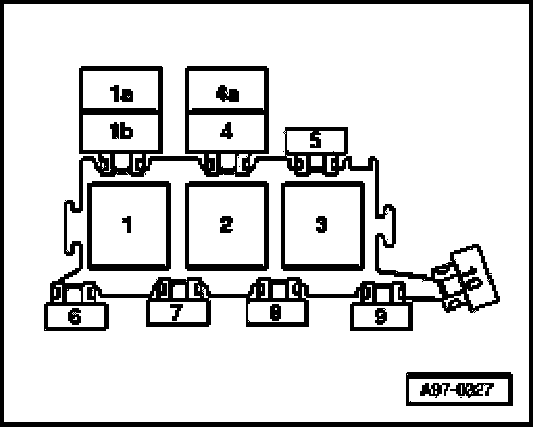

Fig. 3 Component location of Secondary Air Injection (AIR) Pump Relay -J299-







- At position 2 in 3-pin relay carrier in E-box, plenum chamber

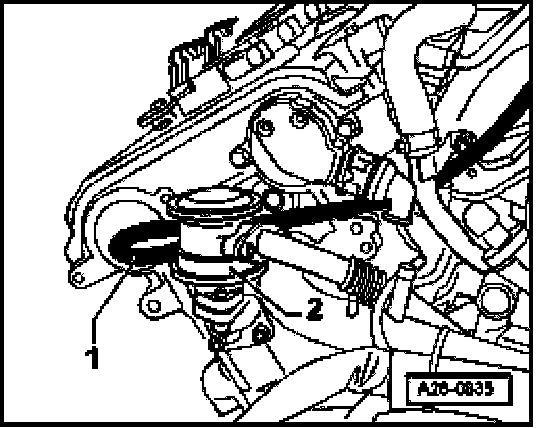

Fig. 4 Combination valve for secondary air injection (AIR)







- at rear of cylinder heads

NOTE: The left combination valve for Secondary Air Injection (AIR) -2- is depicted in the illustration.
