Parking Assist Control Module: Locations

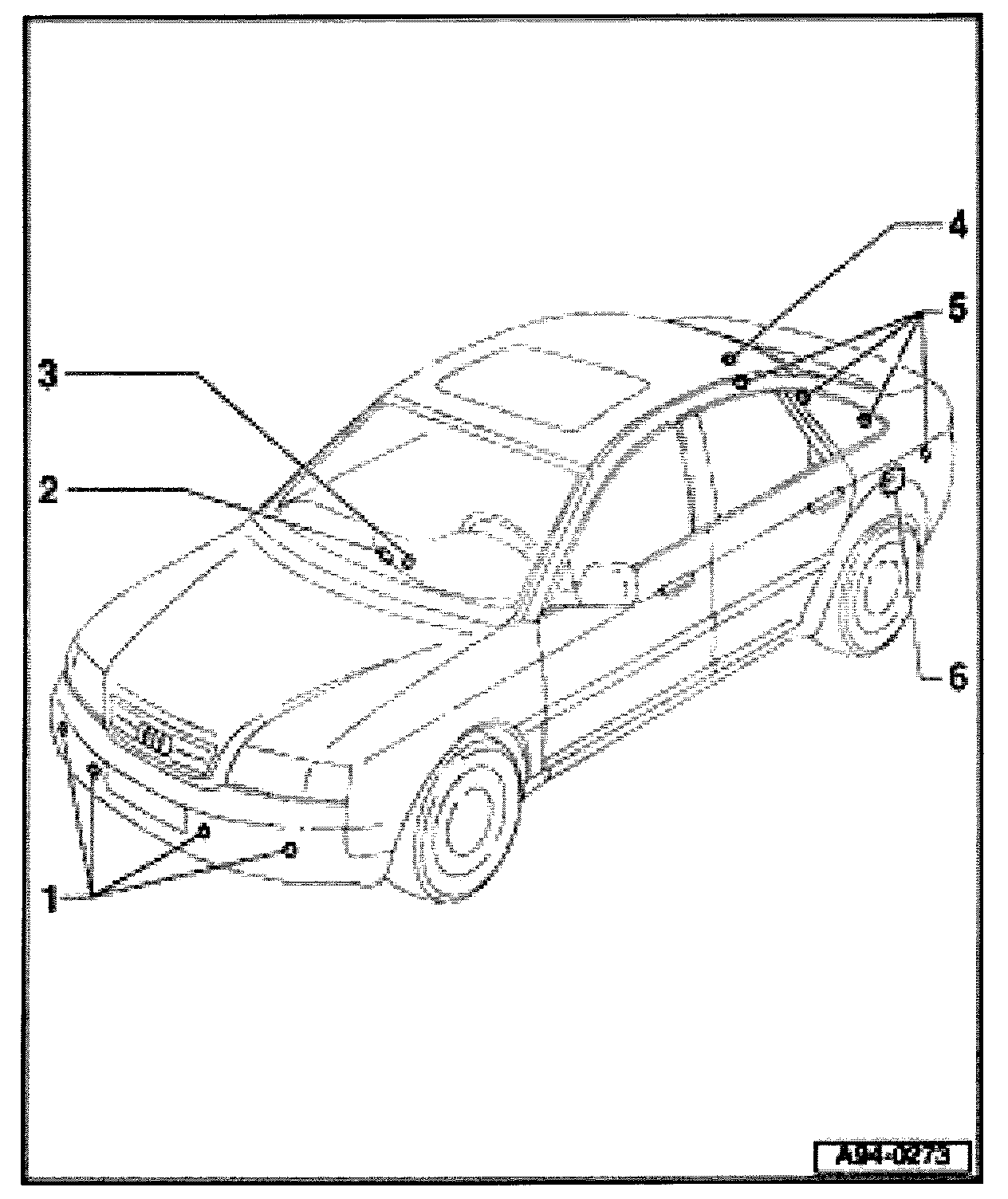

Parking Assistance, Overview







1 - Sensor for parking assistance
- In front bumper
- Only for 8-channel parking assistance
2 - Parking aid button - E266-
- Only for 8-channel parking assistance
- with parking aid switch illumination -L117-
- with integrated warning light for parking - K136-
3 - Front parking aid warning buzzer -H22-
- Only for 8-channel parking assistance
- in instrument panel behind the switch strip
4 - Warning buzzer for parking -H15-
- Installation position, sedan: Below rear parcel shelf
- Component locations, Avant: Behind the side trim in luggage compartment, left side
5 - Sensor for parking assistance
- In rear bumper
6 - Control module for parking aid -J446-
- Below left luggage compartment trim

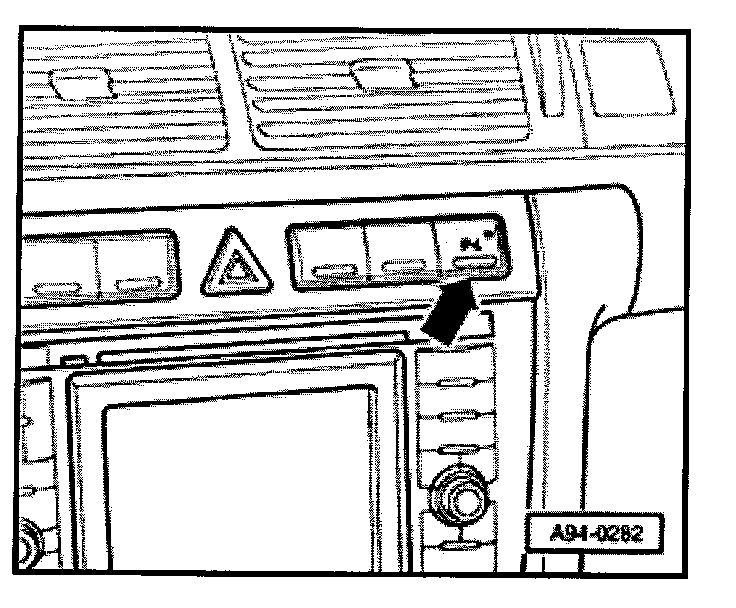

Fig. 1 Component location of parking aid button -E266- for sedan and Avant







- In switch strip in center console


Fig. 2 Component location of parking aid button -E266- for allroad







- In center console
- To remove switch, carefully lever off using a flat screwdriver
