Parking Assist Control Module: Service and Repair




Control Module For Parking Aid - J446-, Removing and Installing

Removing

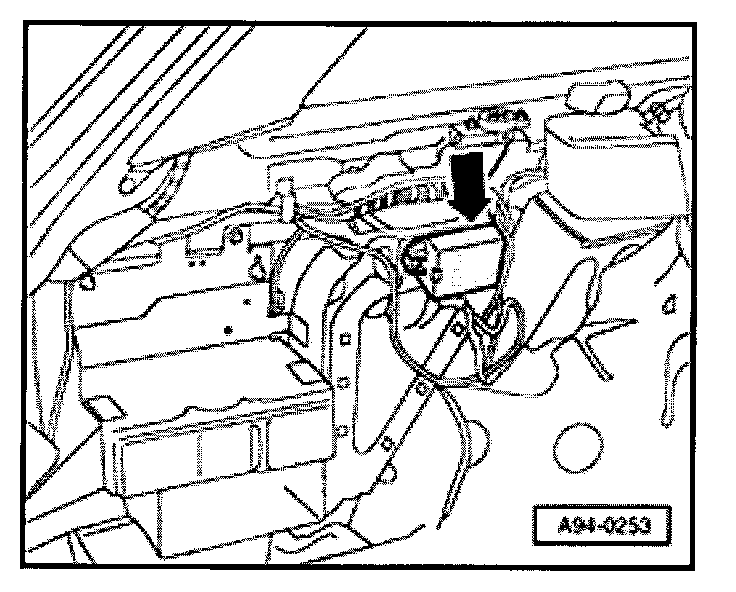

Sedan:







Installation location: Rear left beside the wheel housing.
- Remove left luggage compartment trim.

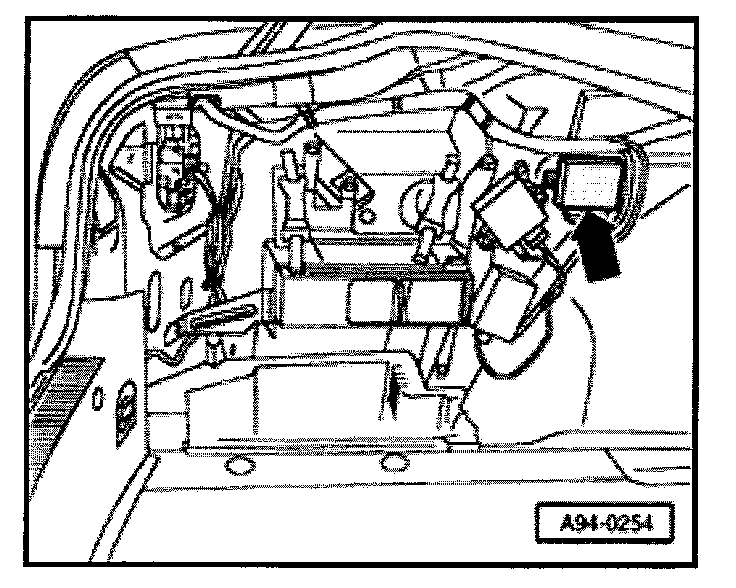

Avant:







Installation location: Rear left beside the wheel housing.
- Remove left luggage compartment trim.

All:
- Disconnect electrical harness connector.

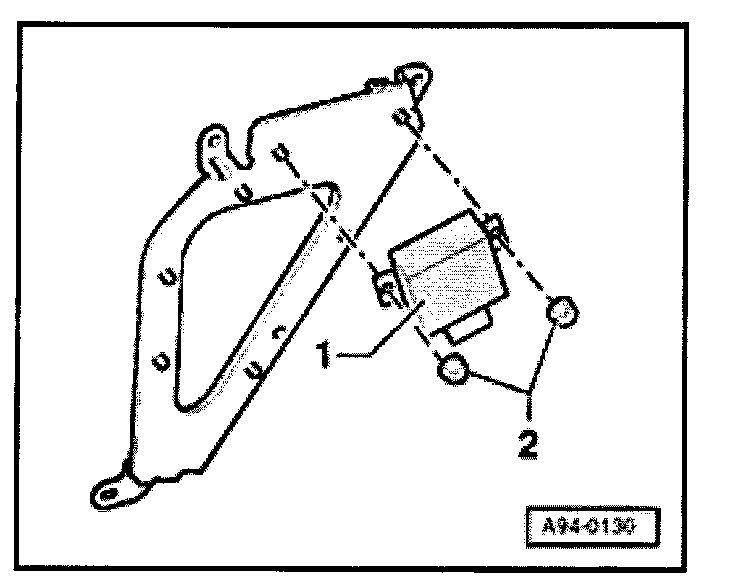

- Unscrew control module bracket at 8- channel control module for parking aid.







- Remove nuts -2-.
- Remove control module for parking aid -1-.

Installing
Installation is the reverse of removal.

Tightening torques

Component Nm
Control module to bracket 3
Bracket to chassis 3
