Radiator Cooling Fan Control Module: Service and Repair



Coolant Fan Control (FC) Module -J293-, Removing And Installing

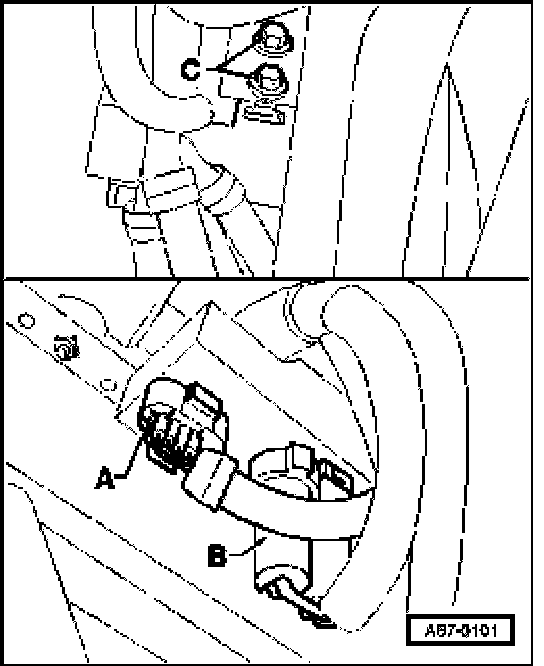

- Disconnect electrical connections -A- and -B-.
- Remove bolts -C-.

NOTE: Depending on engine and sound dampening version, improved access may be obtained by removing pipe between intercoolers and/or support brace between right and left front long members.

Various A/C refrigerant pressure monitoring/control and coolant fan control versions are possible in conjunction with Coolant Fan Control (FC) Module -J293-:
- Vehicles equipped with A/C pressure switch -F129-: -V7- comes on and runs at speed 1
- Vehicles equipped with high pressure switch -G65- and Coolant Fan Control (FC) Module -J293- version "1": -V7- comes on and runs at speed 1, regardless of initial refrigerant system pressure.
- Vehicles equipped with high pressure switch -G65- and Coolant Fan Control (FC) Module -J293- version "2": -V7- comes on and runs at speed 1 after refrigerant system pressure has reached 12 bar.
