Body Control Systems: Locations

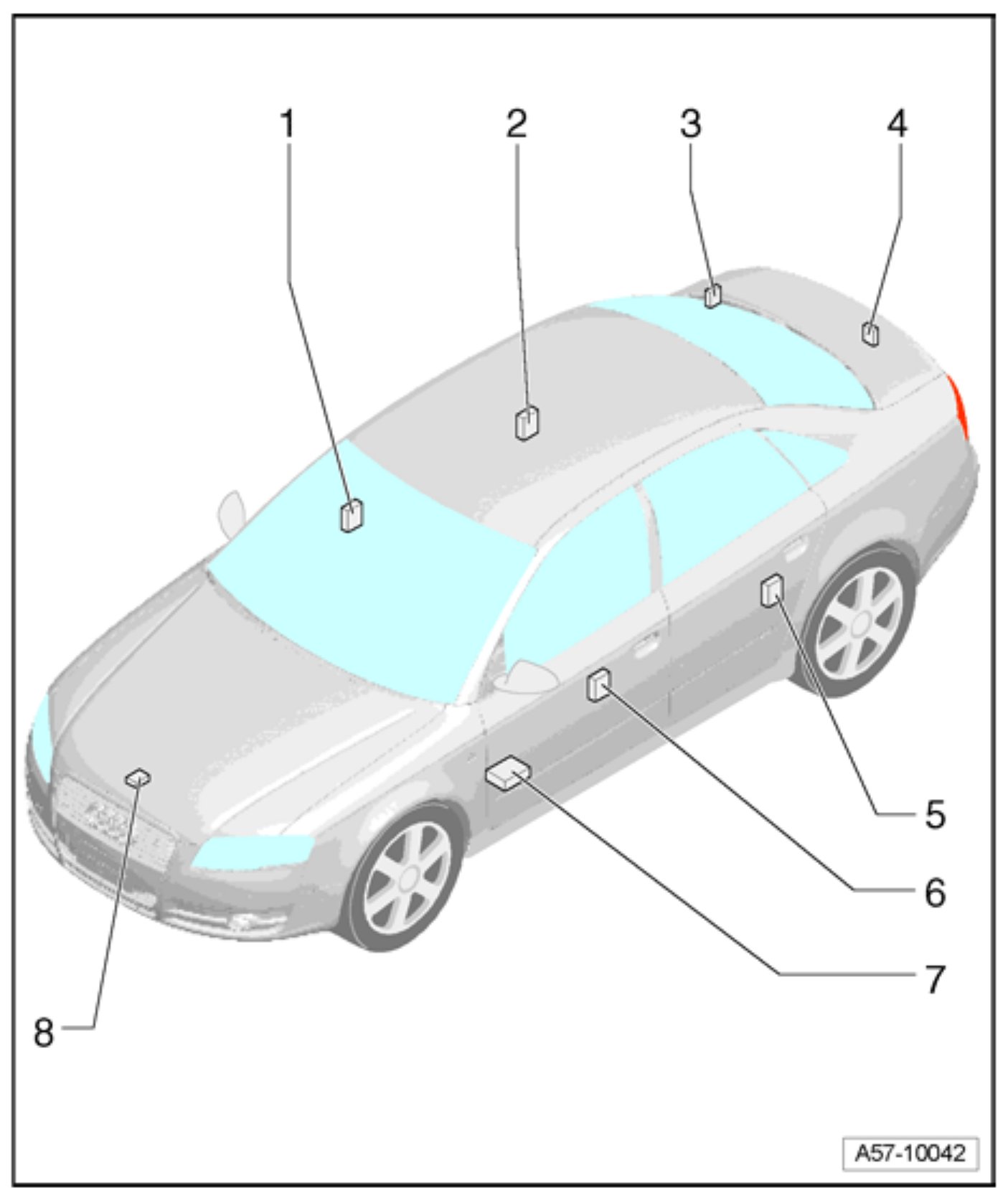

Component Overview (Sedan)







1. Front Passengers Door Control Module J387
- Integrated in window regulator.

2. Right Rear Door Control Module J389
- Integrated in window regulator.

3. Fuel Tank Lid Unlock Motor V155
- Removal

4. Rear Lid Unlock Motor V139

5. Left Rear Door Control Module J388
- Integrated in window regulator.

6. Drivers Door Control Module J386
- Integrated in window regulator.

7. Comfort System Central Control Module J393
- Before removing, disassemble left front seat
- Remove lower A-pillar trim.
- Remove lower A-pillar trim.
- Removal

8. Front Hood Switch F266
- Component location in lock carrier

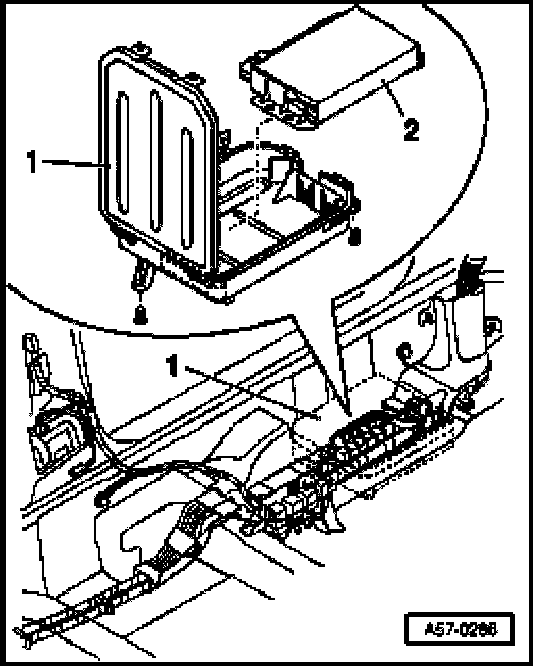

Removing Comfort System Central Control Module J393
- Left front seat and lower A- pillar trim removed.
- Ignition switched off.
- Open box - 1 - for control module.
- Disconnect harness connector from control module - 2 - and remove it.

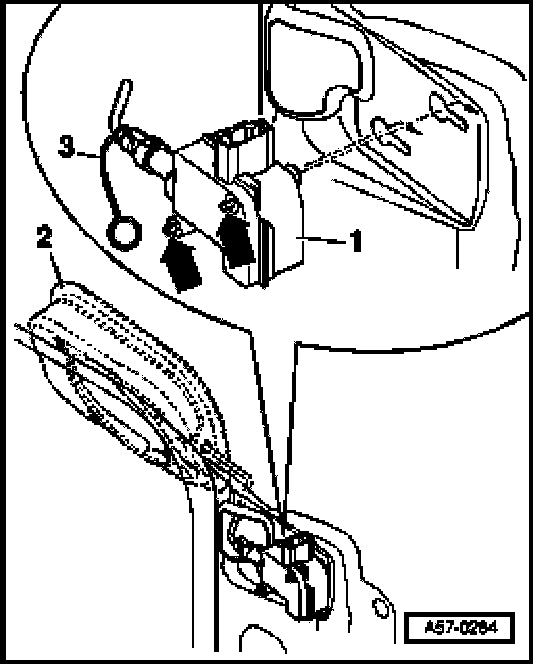

Removing Fuel Tank Lid Unlock Motor V155
- Disconnect electrical connector.
- Loosen bolts - arrows - using special tool T10010, slide actuator - 1 - toward front and remove.
- Before installing actuator, emergency release - 3 - must be slid over the locking pin.
- Locking pin of actuator must move cleanly into closed fuel filler flap - 2 -.
