Refrigerant Temperature Sensor: Service and Repair

Fresh Air Intake Duct Temperature Sensor G89, Removing And Installing

Removing
- Remove glove compartment.

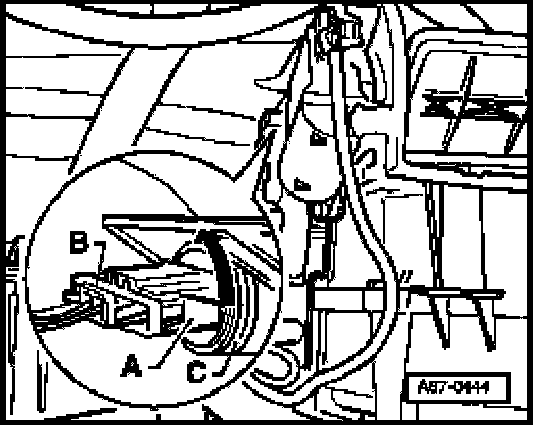

- Reach between air conditioner and bottom panel of plenum chamber, grasp hold of temperature sensor - A - and give it an approx. 90 degrees turn in direction of arrow.
- Pull temperature sensor - A - out of air conditioner.
- Disconnect connector - B -.

NOTE: If Fresh Air Intake Duct Temperature Sensor G89 cannot be removed.

- Remove dust and pollen filter.







- Give temperature sensor -A- approx. 90 degrees turn in direction of arrow and remove it from intake housing in direction of passenger compartment.

Installing







- Check position of O-ring - C - (moisten slightly with lubricant if applicable).

Then reinstall all components removed in reverse order.
