Vehicle Speed Sensor: Service and Repair

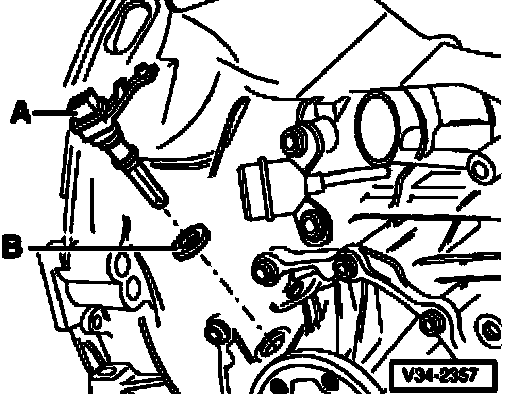

Speedometer Vehicle Speed Sensor (VSS) -G22-, removing and installing, 012/01W 5 Spd. M/T FWDRemoving -
Pull connector off sensor -A-.
-
Press retaining clip down, turn sensor sideways and pull out upward.
Installing -
Replace O-ring -B- during installation.
-
Insert sensor and click into place.
-
Handle sensor carefully. If damaged it is possible that speedometer will not be accurate.
