Piston Ring, Engine

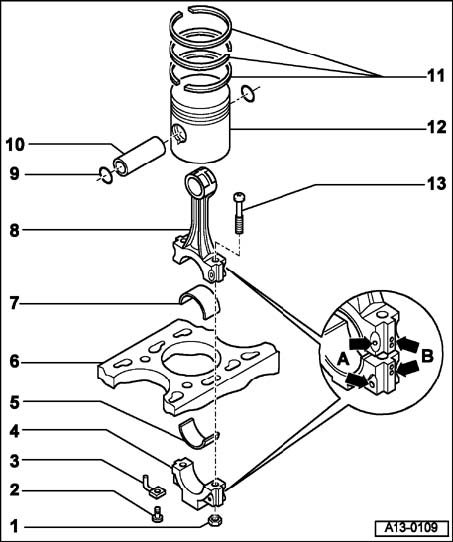

Piston rings 11.
Piston rings ^
Offset gaps by 120°

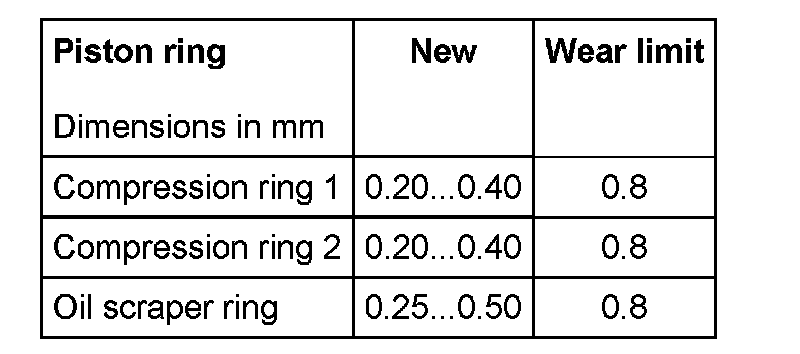

Fig. 1 Checking
piston ring gap
-
Push ring squarely from above down to lower cylinder bore,
approximately 15 mm from cylinder edge. To do this use a
piston without rings.

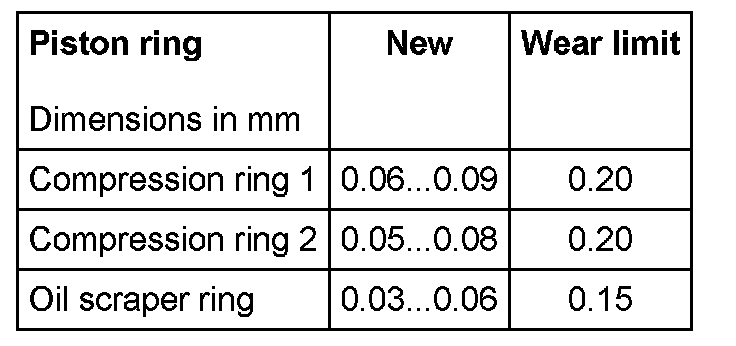

Fig. 2 Checking ring to groove clearance
-
Clean groove before checking clearance.
