Oil Pan, Engine

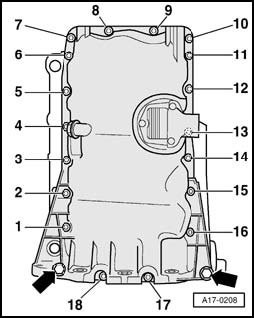

Oil Pan Install oil pan immediately and tighten bolts in sequence shown:
Pre-tighten bolts -1 to 18-
5 Nm in diagonal sequence.
Tighten bolts securing
oil pan to transmission
45 Nm.
Tighten M10 bolts (arrows)
40 Nm.
Tighten bolts -1 to 18-
15 Nm in diagonal sequence.
