Ignition Switch: Service and Repair



Ignition/starter Switch, Removing And Installing

Removing
- Remove steering column switch module.
- Disconnect electrical connection at immobilizer reader coil.

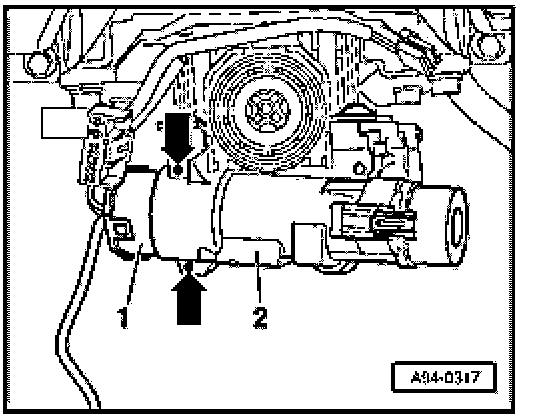

- Disconnect electrical connection -1 - at ignition/starter switch.
- Remove sealing paint from both securing screws - arrows -.
- Loosen bolts - arrows - (do not remove) and pull ignition/starter switch out of steering lock housing - 2 -.

Installing
Install in reverse order of removal, noting the following:

NOTE: Ensure that the ignition/starter switch and lock cylinder are in the same position, e.g. "Ignition ON", when installing.

- Apply sealing paint to bolts - arrows - at steering lock housing - 2 -.
- Install steering column switch module.
