Antitheft Mode Switch: Service and Repair

Passenger Compartment Monitoring Switch and Alarm System Off Switch

• Component location: In the driver's door trim panel.

Removing

- Switch off ignition and remove ignition key.

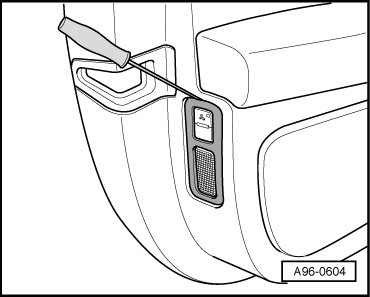

- Carefully pry trim panel out of door trim.

- Unplug door safety light connector.

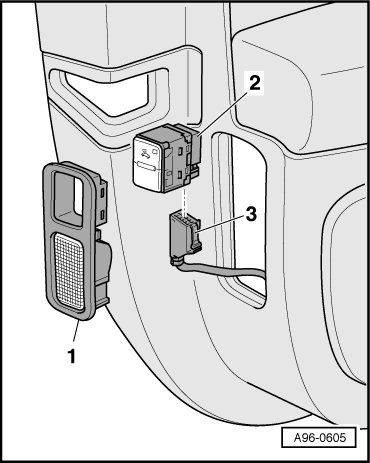

- Disconnect electrical connector - 3 -.

- Carefully unfasten and press button - 2 - to rear out of trim panel - 1 -.

Installing

Install in reverse order.
