Keyless Entry Transmitter Battery: Service and Repair

Central Locking System

=> [ Comfort System Central Control Module J393 ]

Comfort System Central Control Module J393

• Installed location: inside the luggage compartment on the right side above the battery

Removing

- If the control module is replaced, select "Replace" function for respective control module in Guided Fault Finding.

- Switch off ignition and remove ignition key.

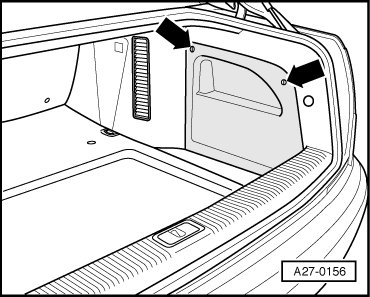

- Remove right luggage compartment side trim panel - arrows -.

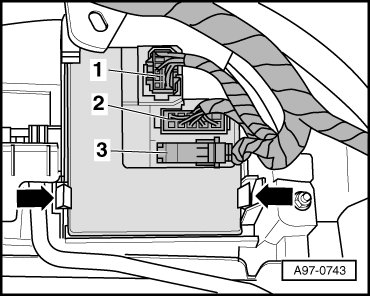

- Remove the Comfort System Central Control Module (J393) - arrows - from the relay and fuse carrier.





• Disconnecting the connectors on the Comfort System Central Control Module (J393) out of sequence will damage the close assist unit.

- Disconnect the connectors in the following sequence: - 1, 2 and 3 -.

Installing

Installation is performed in the reverse order of removal.
