FAX Machine Control Module

Multi Functional Communication Unit (MFCU)

Fax Machine Control Module

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove the luggage compartment trim panel on the left side.

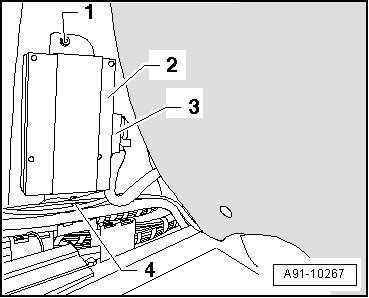

- Disconnect the connector - 3 - from the fax machine control module - 2 -.

- Remove the screws - 1 - and - 4 - (3 Nm) and remove the fax machine control module - 2 -.

Installing

- Install in reverse order of removal.
