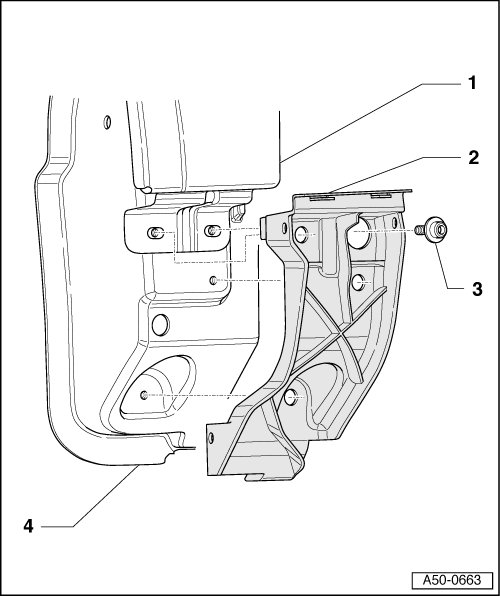

Fender Lower Bracket Assembly Overview
Fender Lower Bracket Assembly Overview 1 - Fender 2 - Fender Bracket •
Remove upper cover for sill panel cover
•
Remove bolts on upper sill panel cover up to approximately B-pillar.
•
Press sill panel cover to the side far enough until bolts for bracket can be removed.
•
Remove bracket and remove bolts for
fender at bottom.
3 - Screw •
8 Nm
4 - Outer A-Pillar
