Memory Seat/Steering Column Adjustment Control Module and Passenger Memory Seat Control Module






Power Memory Front Seats

Memory Seat/Steering Column Adjustment Control Module and Passenger Memory Seat Control Module

• If possible: Push seat fully upward and to the rear.

• For the emergency power supply for the seat forward/back and seat height adjustment motors => refer to => [ Emergency Power Supply Connector Coupling, Pin Assignment ] [1][2]Connector Views.

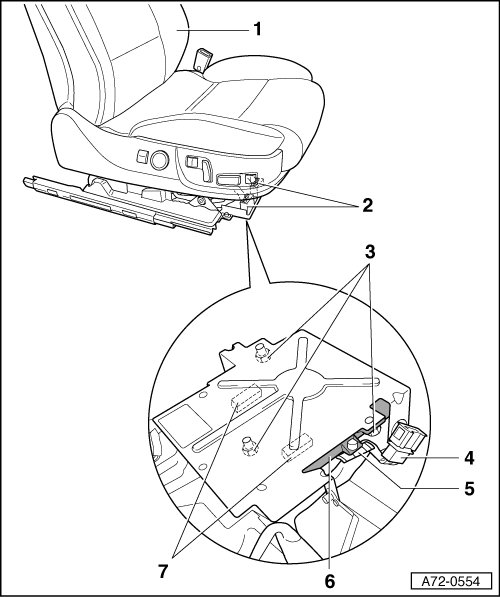

1 - Front seat

2 - Connector (Qty. 2)

3 - Nuts (Qty. 3)

4 - Connector

5 - Securing clips (Qty. 2)

6 - Control module

• Removing

- Remove connector - 4 -.

- Disengage cable harness at left and right on mounting clips - 5 - (Qty. 2).

- Unscrew nuts - 3 - (Qty. 3) on inside of control module - 6 -.

- On the front side of control module - 6 -, disconnect connector - 2 - (Qty. 2).

- Lift out the control module - 6 - far enough that connectors - 7 - (Qty. 2) can be reached.

- Open securing clips (Qty. 2) and disconnect connectors - 7 - (Qty. 2).

• Installing

- Install control module - 6 - in reverse order of removal.

7 - Connector (Qty. 2)
