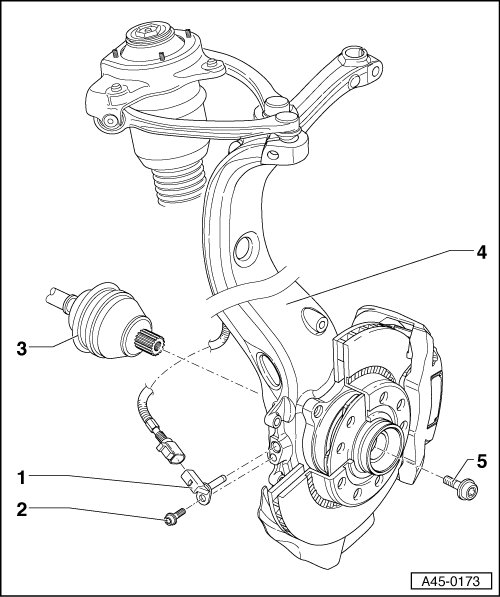

Front Axle ABS Components Assembly Overview
Front Axle ABS Components Assembly Overview 1 - ABS Wheel Speed Sensor •
Before inserting sensor, clean inner surface of fitting hole and coat with grease G 000 650.
•
Replacing, refer to => [ ABS Speed Sensor, Front Axle ]
ABS Speed Sensor, Front Axle.
2 - Bolt •
18 Nm
3 - Drive Axle 4 - Wheel Hub with Wheel Bearing 5 - Bolt •
Replace after each removal.
