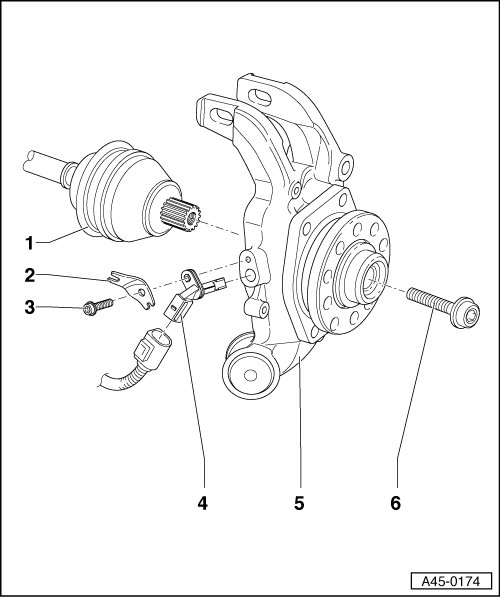

Rear Axle ABS Components Assembly Overview
Rear Axle ABS Components Assembly Overview
1 - Drive Axle
2 - Bracket
• For speed sensor harness.
3 - Bolt
• 18 Nm
4 - ABS Wheel Speed Sensor
• Before inserting sensor, clean inner surface of fitting hole and coat with grease G 000 650.
• Replacing, refer to => [ ABS Speed Sensor, Rear Axle ] ABS Speed Sensor, Rear Axle.
5 - Wheel Bearing/Hub Unit
• The ABS sensor ring is installed in the wheel bearing.
6 - Bolt
• Replace after each removal.
