Refrigerator

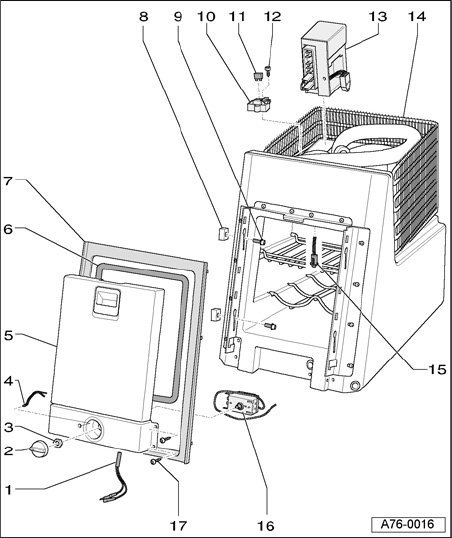

Exploded View Of Components







1 - Contact switch
- For actuating interior light
2 - Rotary knob
- For thermostat
3 - Nut
- Tightening torque: 12 Nm
4 - Light-emitting diode (LED)
- For operation indicator
5 - Hinged cover for refrigerator
6 - Seal
7 - Trim frame
8 - Clamping element
9 - Bolt
- Tightening torque: 4 Nm
10 - Battery monitor
11 - Fuse
12 - Bolt
- Tightening torque: 1.5 Nm
13 - control module for refrigerator compressor
14 - Refrigerator
15 - Light-emitting diode (LED)
- For refrigerator interior light
16 - Thermostat
- With capillary tube
- Take care not to kink or damage capillary tube
17 - Bolt
- Tightening torque: 1.5 Nm
