Seats

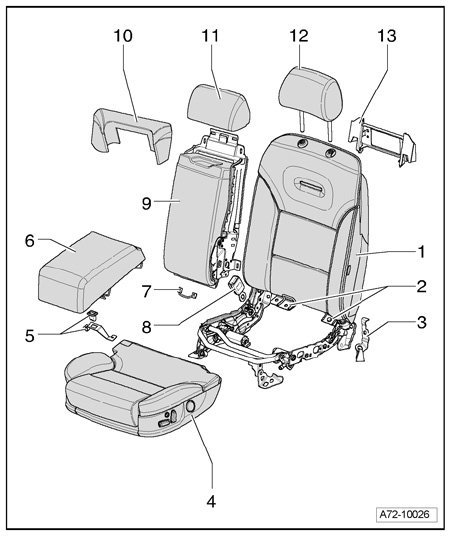

Exploded View Of Electrically Operated Individual Rear Seat Components

1 - Backrest
2 - Lower Anchors and Tethers for Children (LATCH) bracket
3 - Rear outer seat belt anchorage point
4 - Seat pan
5 - Seat center section front holder with fastener
6 - Seat center section
7 - Seat center section rear holder
8 - Belt buckle
9 - Backrest center section; backrest center section release handle
10 - Rear shelf trim
11 - Filler piece
12 - Head restraint
13 - Backrest holder
