Rear A/C Controls, 4-Zone A/C System
Center Console without ExtensionRear A/C Controls, 4-Zone A/C System Removing -
Switch off ignition.
-

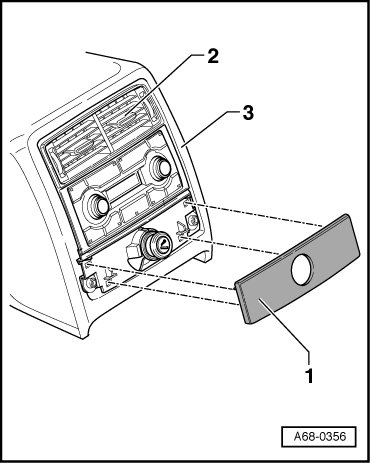

Unclip rear center console panel -
1 -.
2
Rear air vents, 4-zone A/C system
3
Center Console
-

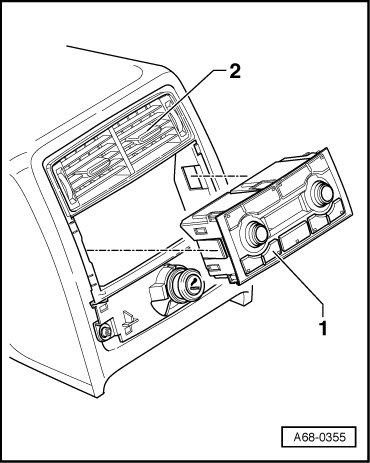

Pull rear A/C controls -
1 - out of center console -
2 -.
-
Disconnect electrical connectors.
-
Remove rear A/C controls.
Installing Installation is reverse of removal.
